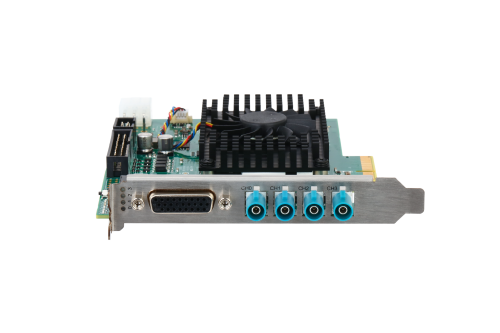

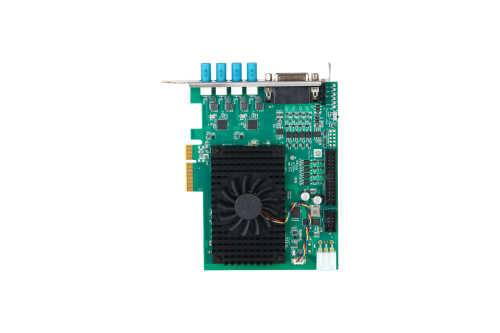

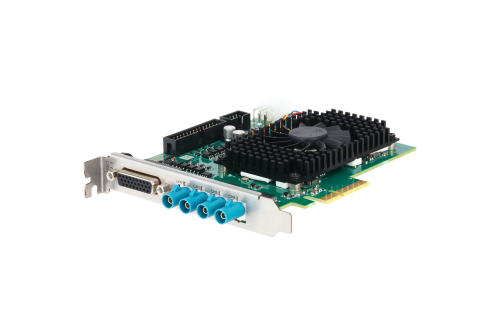

GS-7S40E

SerDes Frame Grabber

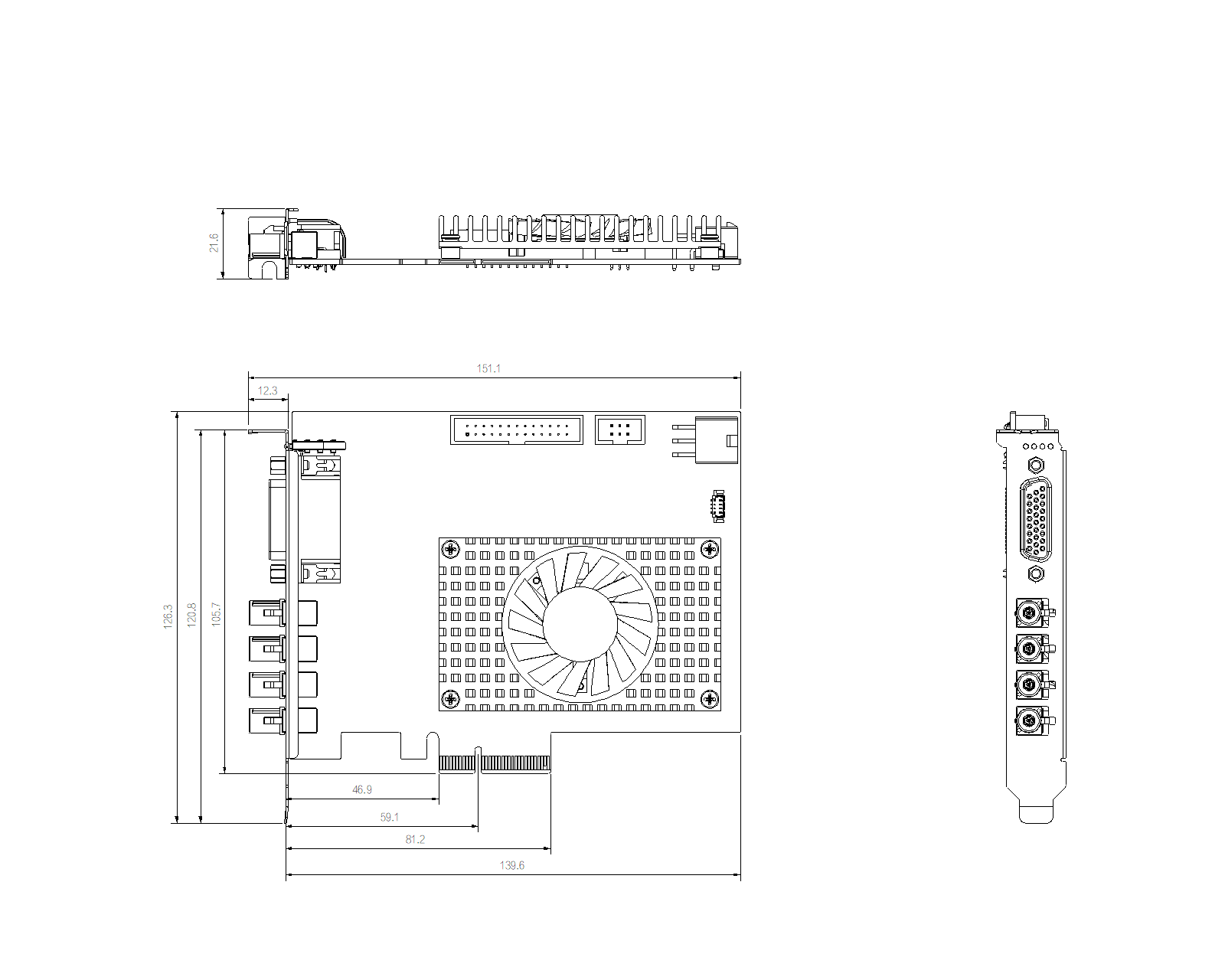

The iRayple GS-7S40E is a SerDes vision component. Rated specifications: Series SerDes, System OS Windows 10/11 - Support: Mvviewer. It draws 6.8W (excluding POC) and operates from 0℃~+60℃. The body measures 151.1mm×126.3mm×21.6mm and weighs 200g.

Series
SerDes
Model
GS-7S40E
Mother Board
Support: RayDes series industrial camera
CPU
Interface: FAKRA Zcode×4 - Tranfer rate: 6 Gbps
In stockModel: GS-7S40E
Get a quote
Performance highlights

Engineered for precise industrial imaging

  • Interface Support: Equipped with 4 FAKRA-Zcode interfaces, each supporting bandwidth up to 6Gbps for high-speed data transmission.
  • Camera Connectivity: Capable of connecting to up to 4 cameras, providing power to the cameras via POC (Power over Cable) technology for simplified installation.
  • Image Signal Processing Features: Supports a range of ISP (Image Signal Processing) functions, including gamma correction, binning, white balance, and brightness adjustment, significantly enhancing image quality.
  • Input and Output Capability: Single card supports up to 8 inputs and 4 outputs, catering to complex signal processing requirements.
  • High-Performance Interface: Full-height PCIe plug-in card featuring a PCIe Gen 3 x4 interface, with a total bus bandwidth of up to 25Gbps to ensure efficient data processing.
  • Status Indicators: Four LED indicators are provided to display the status of each interface in real time, facilitating monitoring and troubleshooting.
