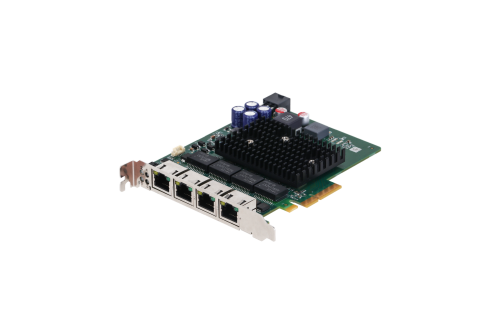

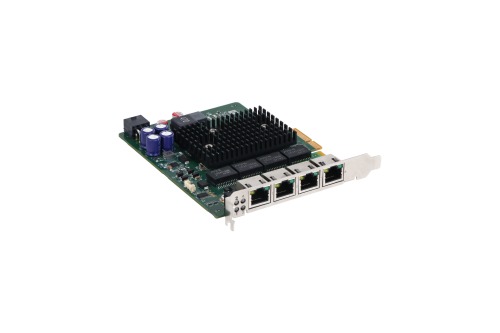

GE-5G40E
Frame Grapbber Card
The iRayple GE-5G40E is an Acquisition Card vision component. Rated specifications: Series Acquisition Card, System OS Windows7/10 64bits, linux, Ubuntu. It runs on 6-pin ATX and operates from 0~50℃. The body measures 151mm×126.3mm×21.6mm and weighs 182g.
- Series
- Acquisition Card
- Model
- GE-5G40E
- CPU
- GigE industrial camera、2.5GigE industrial camera
- Type
- NIC
In stockModel: GE-5G40E
Performance highlights
Engineered for precise industrial imaging
- Gigabit Ethernet interface,maximum 4 connections, providing 2.5 Gbps bandwidth respectively with a maximum transmission distance of 100m
- Support POE power Supply,max 8W per channel,providing max 26W by four channels
- Ethernet port Status indicator
- CE,KC certificates
Technical data
Product parameters
The acquisition card is an indispensable component in a machine vision system. iRAYPLE offers acquisition card products with different interfaces to provide customers with a full range of vision application solutions and product selection services.
System Parameter
- Series
- Acquisition Card
- Model
- GE-5G40E
- CPU
- GigE industrial camera、2.5GigE industrial camera
- Type
- NIC
- Ethernet Port
- 4 Channels - 100Mbps、1Gbps、2.5Gbps
Internal Module
- PCIe
- PCIe Gen2 X4
OS
- System OS
- Windows7/10 64bits, linux, Ubuntu
Power Supply
- Input Voltage
- 6-pin ATX
- Power
- 3.6W（without POE）- POE: Rack 6 PIN
Environment
- Operating Temperature
- 0~50℃
- Storage Temperature
- -20~70℃
- Relative Humidity
- 10% ~ 90%RH ,non-condensing
Mechanical
- Dimensions
- 151mm×126.3mm×21.6mm
- Weight
- 182g

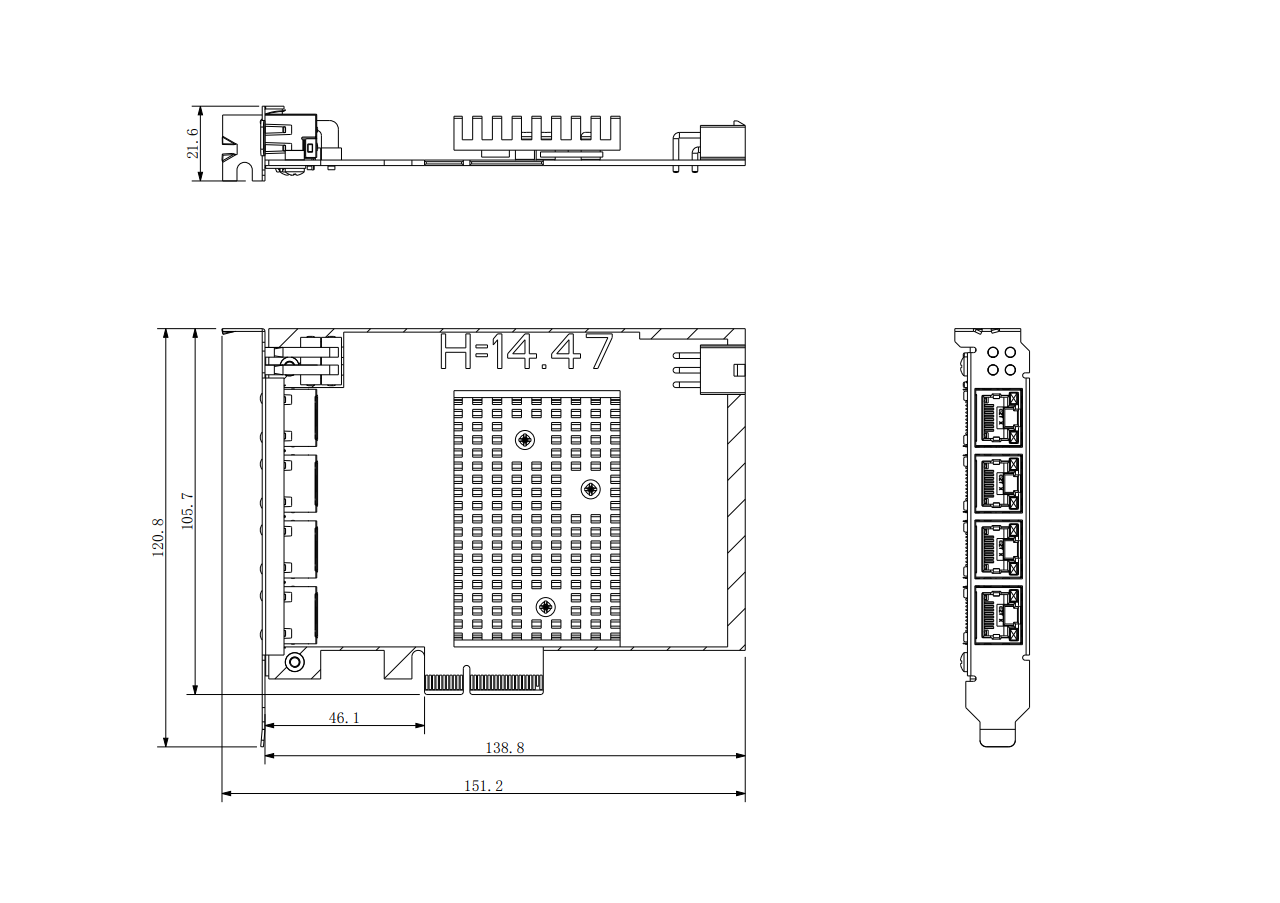

Mechanical drawing
Compact housing dimensions
151mm×126.3mm×21.6mm
