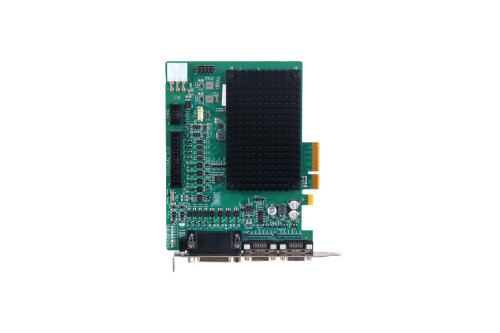

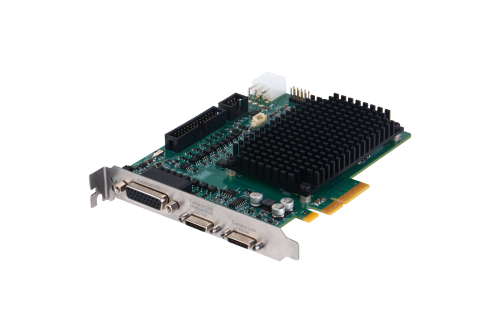

GCL-5F21E
Camera Link Card
The iRayple GCL-5F21E is a vision component. Rated specifications: System OS Windows 7/8/10 64 bit. It draws 8W (without PoCL) from PCIe/ATX 6-pin Connector and operates from 0℃~+50℃. The body measures 151.6mm×126.3mm×21.6mm and weighs 175.1 g.
- Model
- GCL-5F21E
- Type
- CamerLink Frame Grabber
- PCIe
- PCIe Gen2 X4
- System OS
- Windows 7/8/10 64 bit
In stockModel: GCL-5F21E
Performance highlights
Engineered for precise industrial imaging
- Supports PoCL(Power over Camera Link)
- Clock frequency coversthe range from 20 MHz up to 85 MHz
- Supports Dual Base,Medium,Full,80-Bit configuration modes
- Supports multiple I/O channels
- Compatible with Cameralink 2.0 protocol
- Compatible with Genlcam standard
Technical data
Product parameters
The acquisition card is an indispensable component in a machine vision system. iRAYPLE offers acquisition card products with different interfaces to provide customers with a full range of vision application solutions and product selection services.
System Parameter
- Model
- GCL-5F21E
- Type
- CamerLink Frame Grabber
Internal Module
- PCIe
- PCIe Gen2 X4
OS
- System OS
- Windows 7/8/10 64 bit
Power Supply
- Input Voltage
- PCIe/ATX 6-pin Connector
- Power
- 8W (without PoCL)
Environment
- Operating Temperature
- 0℃~+50℃
- Storage Temperature
- -20℃~+70℃
Mechanical
- Dimensions
- 151.6mm×126.3mm×21.6mm
- Weight
- 175.1 g

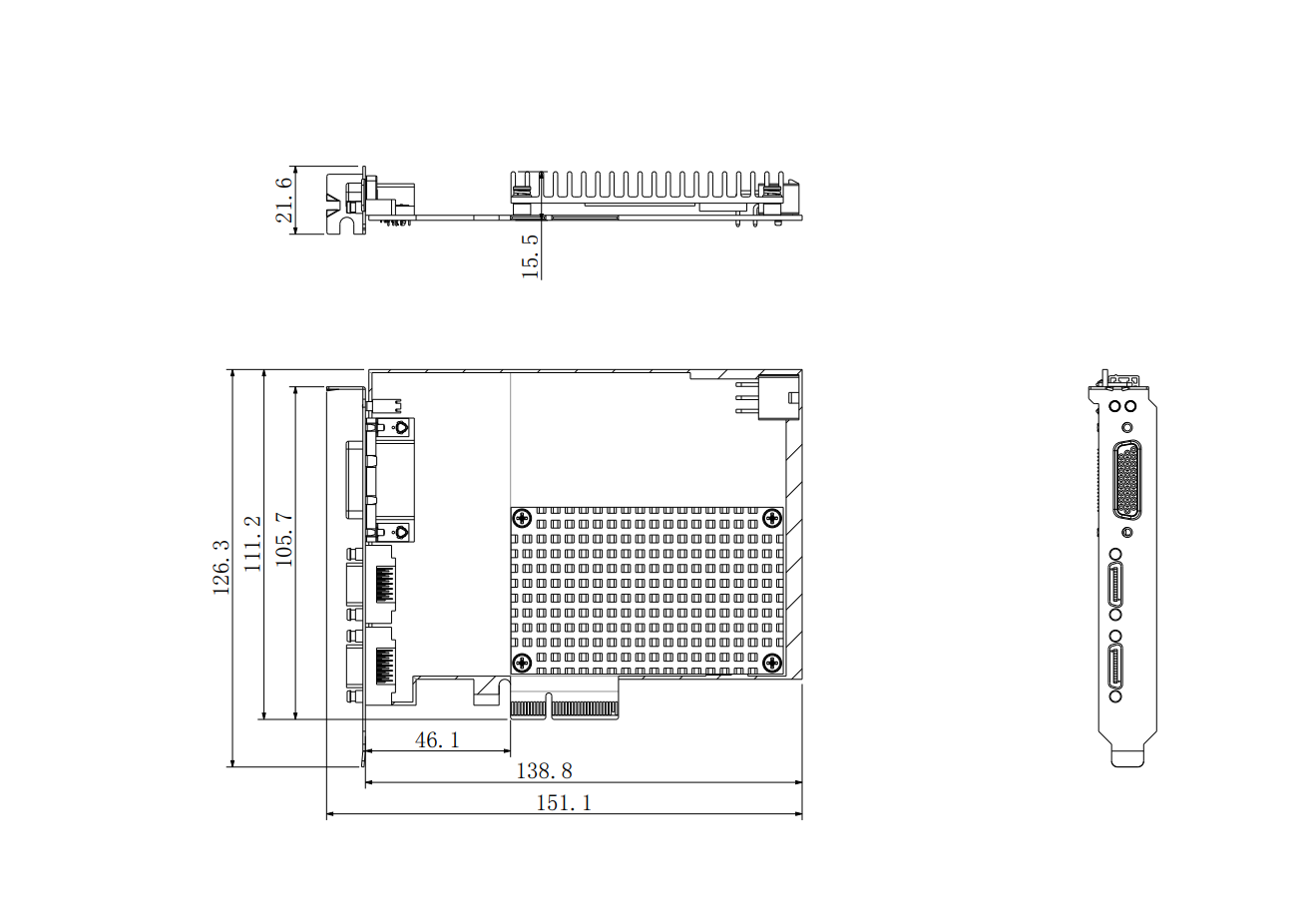

Mechanical drawing
Compact housing dimensions
151.6mm×126.3mm×21.6mm
