The iRayple DH-MV-SI5B00MG002E is a 20 MP monochrome smart camera. It uses a rolling shutter and reads out 5472 × 3648 - 1.1" CMOS at 21 fps. It takes C-mount optics. It draws <30 W from DC24V and operates from -20 °C to 50 °C. It weighs Net: <600 g - Gross: ＜800 g.
- Series Type
- X86
- Resolution
- 5472 × 3648 - 1.1" CMOS
- Frame Rate
- 21 fps
- Shutter
- Rolling
In stockModel: DH-MV-SI5B00MG002E
Performance highlights
Engineered for precise industrial imaging
- Embedded Huaray self-developed algorithm platform, with awealth of algorithm tools, can be used for detection, positive and negative detection, positioning guidance, defect detection, size measurement and other scenarios.
- Support Win10, support secondary development based on HuaRay
- Support VGA/USB interface and extended keyboard/mouse connection
- CMOS series product covering 1.3MP~20.0M Presolution
- Support Golbal/Rolling shutter
- Support software trigger/hardware trigger/free run mode
- GigE interface provides maximum 1G bps bandwidth
Technical data
Product parameters
Powered by Windows 10, this device integrates an MVP machine vision platform for image processing, algorithm tools, and communication. It supports tasks like positioning, recognition, measurement, and inspection with resolutions from 5MP to 20MP. Equipped with Gigabit Ethernet and diverse I/O interfaces, it seamlessly connects with various equipment and actuators.
Basic
- Series Type
- X86
- Resolution
- 5472 × 3648 - 1.1" CMOS
- Frame Rate
- 21 fps
- Shutter
- Rolling
- Type
- Mono
- Function
- Built-in MVviewer industrial camera client, which allows users to conduct secondary development based on the Huarui SDK and supports customer-designed software. Embedded with the MVP algorithm platform software, it features a rich set of algorithm tools that can be used for presence/absence detection, orientation detection, positioning guidance, defect detection, dimensional measurement, and other applications.
- Focal Length
- Customization
- Focus Control
- Manual Focus
- Light Source
- Customization
- Trigger Mode
- Software trigger/Hardware trigger/Free run mode
- Software
- MVP
View
- Working Distance
- Customization
- Field of View
- Customization
Processing
- AI Accelerator
- Support
Communication
- Communication
- RS232 or RS485，1Gbps Ethernet
- Connector Port
- 3 physical interface: 1 GigE, 1 GPIO, 1 VGA & 1 USB port
- Network Port
- 1Gbps Ethernet
- GPIO Interface
- 12 pins IO interface: 3 input without opto isolation, 3 output without opto isolation
- Communicate Protocol
- SDK，Serial，TCPServer，TCPClient，Profinet，Modbus TCP
- Mount
- C-mount
Power Supply
- Input Voltage
- DC24V
- Power
- <30 W
Environment
- Operating Temperature
- -20 °C to 50 °C
- Storage Temperature
- -30~80℃
- Relative Humidity
- 20~95%(No Condensation)
Mechanical
- Dimensions
- Product: 132.2mm×69mm×62mm - Packing: 190 mm × 179 mm × 127 mm
- Weight
- Net: <600 g - Gross: ＜800 g
- Protection
- IP67

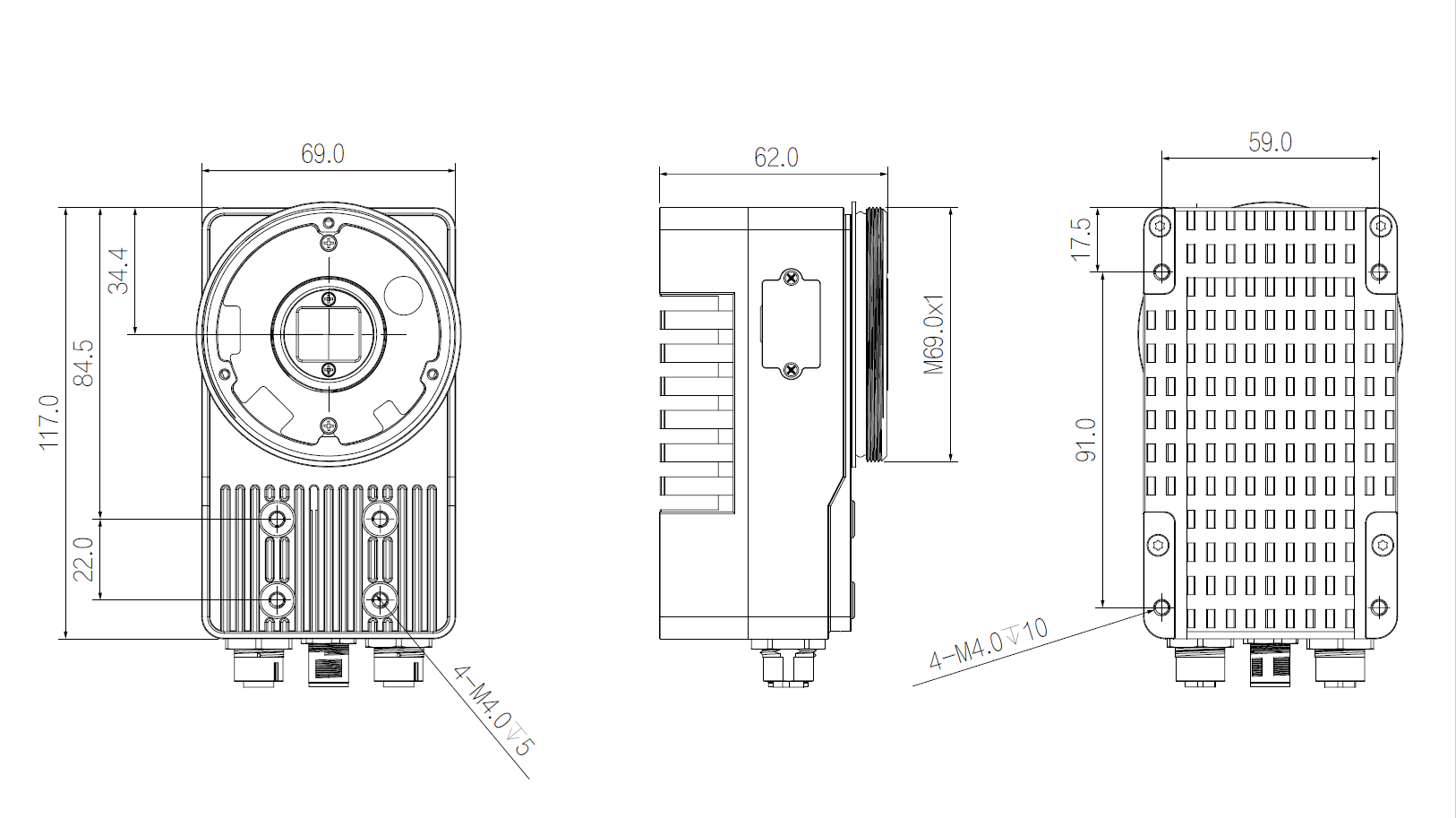

Mechanical drawing
Compact housing dimensions
132.2mm×69mm×62mm
