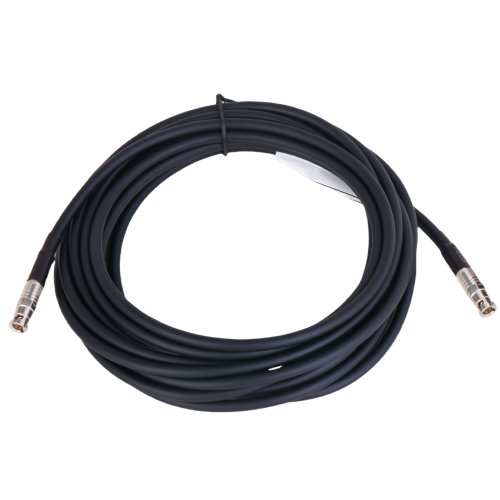

C03-CXP-HDBNC-HDBNC-10M
Cables CoaXpress
The iRayple C03-CXP-HDBNC-HDBNC-10M is a CoaXPress data cable (HDBNC to HDBNCR) vision component. Rated specifications: Series CoaXPress data cable (HDBNC to HDBNCR). It operates from -20℃～80℃.
- Series
- CoaXPress data cable (HDBNC to HDBNCR)
- Model
- C03-CXP-HDBNC-HDBNC-10M
- Type

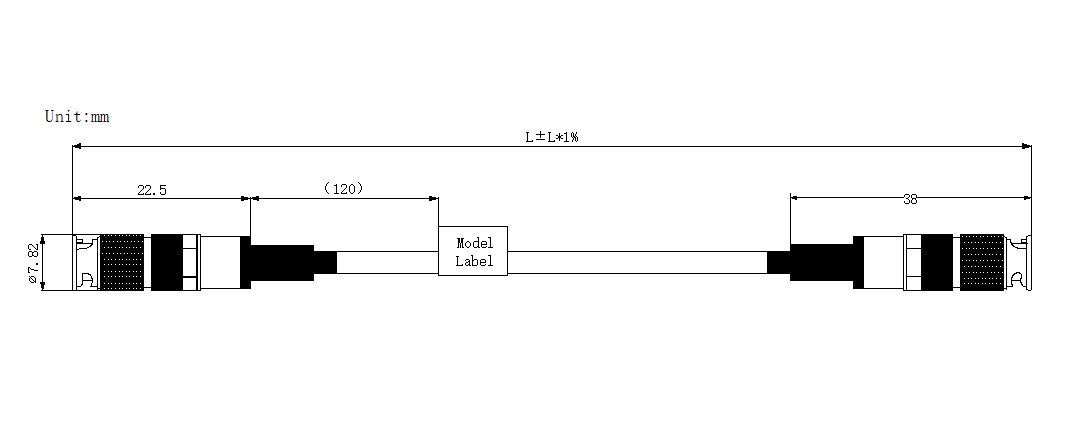

- End A Connector: HDBNC - End B Connector: HDBNC - Length: 10m - Cable Structure: 24AWG*1C+B+P - Cable Diameter: 4.5mm
- Power
- Max Operating Voltage: 30 VDC
Engineered for precise industrial imaging
- Suitable for CoaXPress industrial cameras,transmission rate 12.5Gbps
- Adopting coaxial cable design, with a small diameter
- With shielding layer design, to ensure anti-external electromagnetic interference
- With excellent flexibility, to meet the tank chain mobile installation applications
- Specific good wear resistance, cold resistance, flame retardant
- Conform to RoHS 2.0
Product parameters
Industrial camera cables are a critical component of industrial vision systems, serving the essential function of transmitting both image data captured by the camera and control signals. Depending on the interface and transmission requirements of the industrial camera, the main types of cables include USB 3.0, GigE, CameraLink, and CXP, among others. Each of these cable types offers distinct advantages in terms of transmission speed, stability, and distance. Choosing the appropriate cable type depends on the specific needs and performance requirements of your camera system.
System Parameter
- Series
- CoaXPress data cable (HDBNC to HDBNCR)
- Model
- C03-CXP-HDBNC-HDBNC-10M
- Type
- End A Connector: HDBNC - End B Connector: HDBNC - Length: 10m - Cable Structure: 24AWG*1C+B+P - Cable Diameter: 4.5mm
Power Supply
- Power
- Max Operating Voltage: 30 VDC
Certificates
- Certificates Support
- RoHS2.0
Environment
- Operating Temperature
- -20℃～80℃
- Protection Class
- Cable Sheath: PVC - Number of Cycles Rubber Tracks Complete: 8 million cycles
