Industrial Camera
iRayple · Industrial Camera
AH7B4AMG000E
Camera 24.4MP
The iRayple AH7B4AMG000E is a 25 MP monochrome GigE industrial camera. It is built on the Sony - IMX540 (1.2" CMOS) sensor with a global shutter and reads out 5328×4608 at 4.9 fps. It takes C-mount optics and connects over GigE (GigE, PoE). It draws 12 VDC≈2.40W(Typ. ) from PoE/ DC 9V~24V power supply via Hirose interface and operates from 0℃~+50℃. The body measures 29 mm × 29 mm × 42 mm and weighs 98 g.
- Series Type
- A Pro
- Sensor
- 1.2" CMOS
- Image Sensor
- Sony - IMX540
- Shutter
- Global
In stockModel: AH7B4AMG000E
Performance highlights
Engineered for precise industrial imaging
- Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m
- 256MB on-board cache for data transmission or image resend
- upport Software Trigger/Hardware Trigger/Free Run Mode
- Support ISP functions including Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast,FFC,Denoising Sharpness,BalanceWhite,CCM,ColorAdjustment,Multi-color temperature adjustment, multi-function interpolation adjustment etc.
- Support multiple image data formats output/ROI/Binning(Including Pixel arbitrary scaling)/Mirror/ AutoFunction/Compress/Sequencer etc.
- Conform to GigE Vision V2.0 protocol and GenICam standard
- Conform to CE/UKCA/UL/KC,RoHS
Technical data
Product parameters
The A Pro area scan products are designed with a compact and lightweight form, meanwhile offering high industrial performance.
Basic
- Series Type
- A Pro
- Sensor
- 1.2" CMOS
- Image Sensor
- Sony - IMX540
- Shutter
- Global
- Resolution
- 5328×4608
- Frame Rate
- 4.9 fps
- Bit Depth
- 12
- Type
- Mono
- Pixel Size
- 2.74 μm × 2.74 μm
- Image Format
- Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed,YUV422_8_UYVY,YUV422_8,RGB8,BGR8
- Binning
- off/onebytwo/twobyone/twobytwo/onebyfour/fourbyone/...
- Dynamic Range
- 71 dB
- ROI
- Support
- X Flip
- Support
- Y Flip
- Support
- Gain
- 1～32X
- Exposure Time
- SE: 1 μs ~ 2.4 μs UE: 28 μs ~ 10 sec
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
- SPC
- Support
Performance
- User Setting
- Support three sets of user-defined configurations
- Image Buffer
- 256MB
Communication
- Interface
- GigE, PoE
- Mount
- C-mount
Power Supply
- Input Voltage
- PoE/ DC 9V~24V power supply via Hirose interface
- Power
- 12 VDC≈2.40W(Typ. )
Environment
- Operating Temperature
- 0℃~+50℃
- Storage Temperature
- -30℃~+80℃
Mechanical
- Dimensions
- 29 mm × 29 mm × 42 mm (not including rear case connector)
- Weight
- 98 g

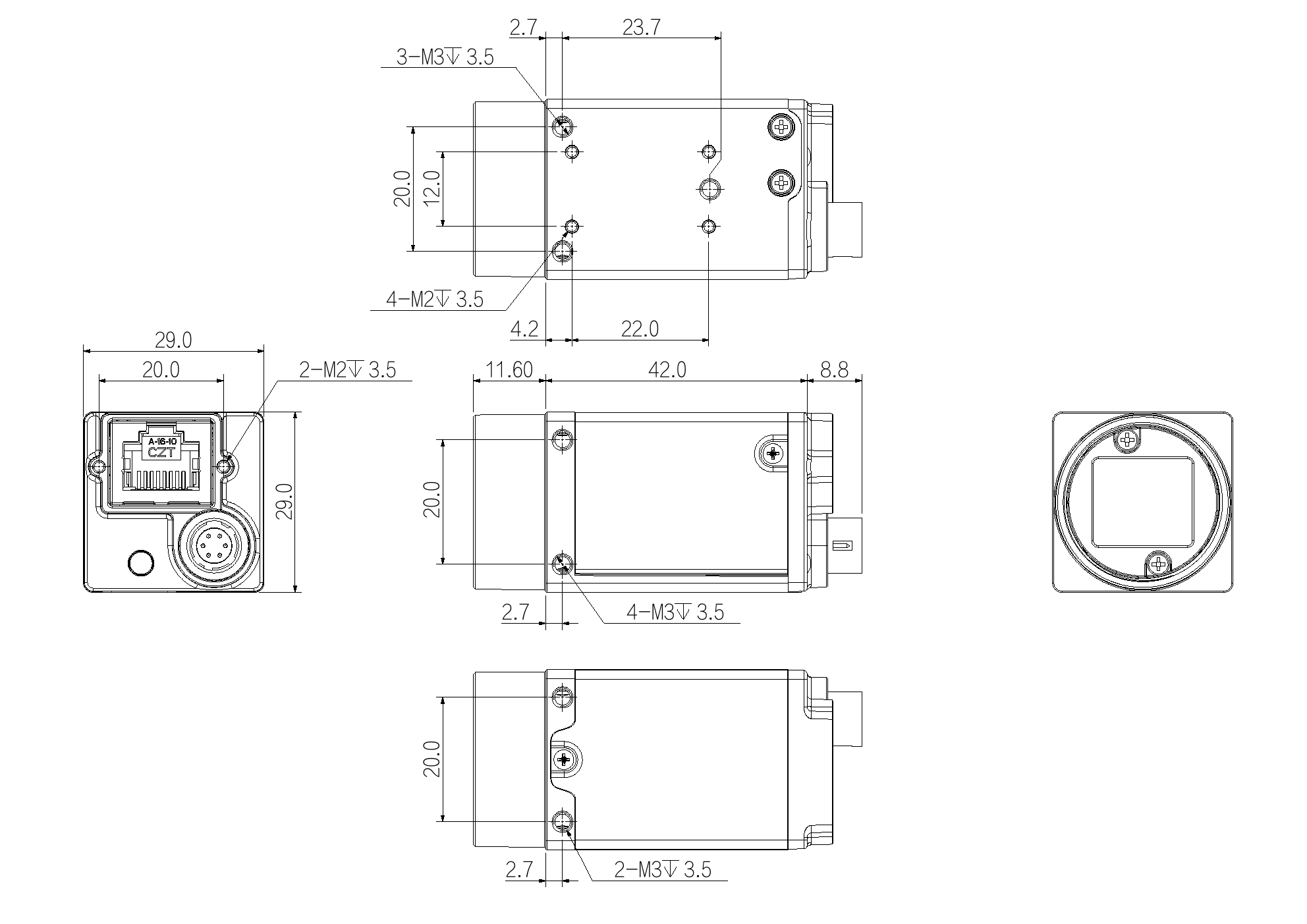

Mechanical drawing
Compact housing dimensions
29 mm × 29 mm × 42 mm
