Industrial Camera
iRayple · Industrial Camera
AH7A20CG000E
Camera 12MP

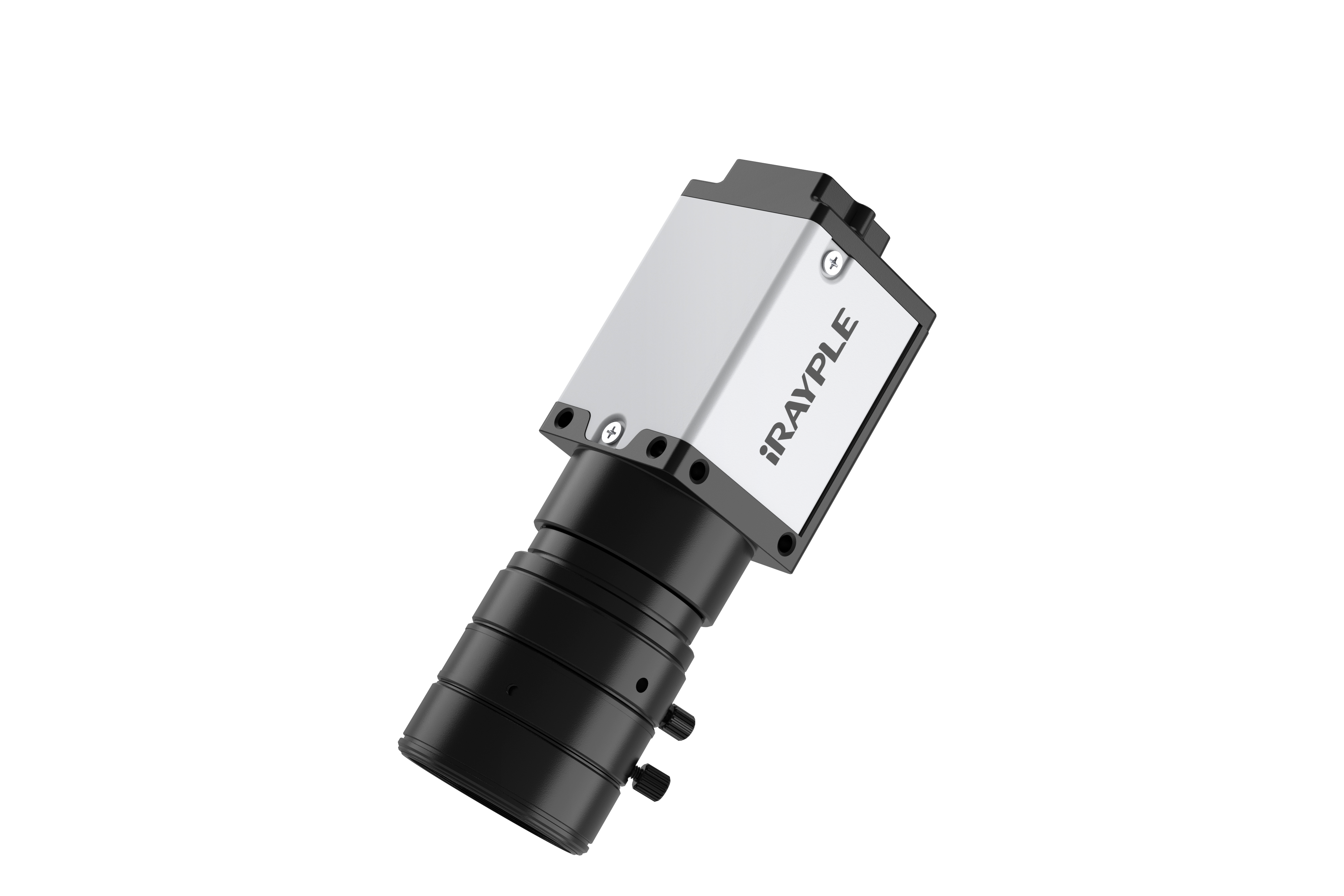

The iRayple AH7A20CG000E is a 12 MP monochrome GigE industrial camera. It is built on the Sony - IMX304 (1.1" CMOS) sensor with a global shutter and reads out 4096 × 3000 at 9.9 fps. It takes C-mount optics and connects over GigE. It draws 12 VDC≈2.65W(Typ. ) from PoE/ DC 9V~24V power supply via Hirose interface and operates from -30℃~+50℃. The body measures 29 mm×29 mm×42 mm and weighs 98 g.
- Series Type
- A Pro
- Sensor
- 1.1" CMOS
- Image Sensor
- Sony - IMX304
- Shutter
- Global
In stockModel: AH7A20CG000E
Performance highlights
Engineered for precise industrial imaging
- Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m
- Conform to GigE Vision V2.0 protocol and GenICam standard
- Conform to CE/UKCA/UL/KC,RoHS
Technical data
Product parameters
The A Pro area scan products are designed with a compact and lightweight form, meanwhile offering high industrial performance.
Basic
- Series Type
- A Pro
- Sensor
- 1.1" CMOS
- Image Sensor
- Sony - IMX304
- Shutter
- Global
- Resolution
- 4096 × 3000
- Frame Rate
- 9.9 fps
- Bit Depth
- 12
- Type
- Mono
- Pixel Size
- 3.45 μm × 3.45 μm
- Image Format
- Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed,YUV422_8_UYVY,YUV422_8,RGB8,BGR8
- Binning
- off/onebytwo/twobyone/twobytwo/onebyfour/fourbyone/twobyfour/fourbytwo/fourbyfour/ThreebyThree/onebySix/SixbyOne/SixbySix
- Dynamic Range
- 70.8 dB
- ROI
- Support
- Gain
- 1～32X
- Exposure Time
- SE: 1 μs ~ 14 μs UE: 15 μs ~ 10 sec
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
- SPC
- Support
Performance
- User Setting
- Support three sets of user-defined configurations
- Image Buffer
- 256MB
Communication
- Interface
- GigE
- Mount
- C-mount
Power Supply
- Input Voltage
- PoE/ DC 9V~24V power supply via Hirose interface
- Power
- 12 VDC≈2.65W(Typ. )
Environment
- Operating Temperature
- -30℃~+50℃
- Storage Temperature
- -30℃~+80℃
Mechanical
- Dimensions
- 29 mm×29 mm×42 mm (not including lens mount and rear case connector)
- Weight
- 98 g

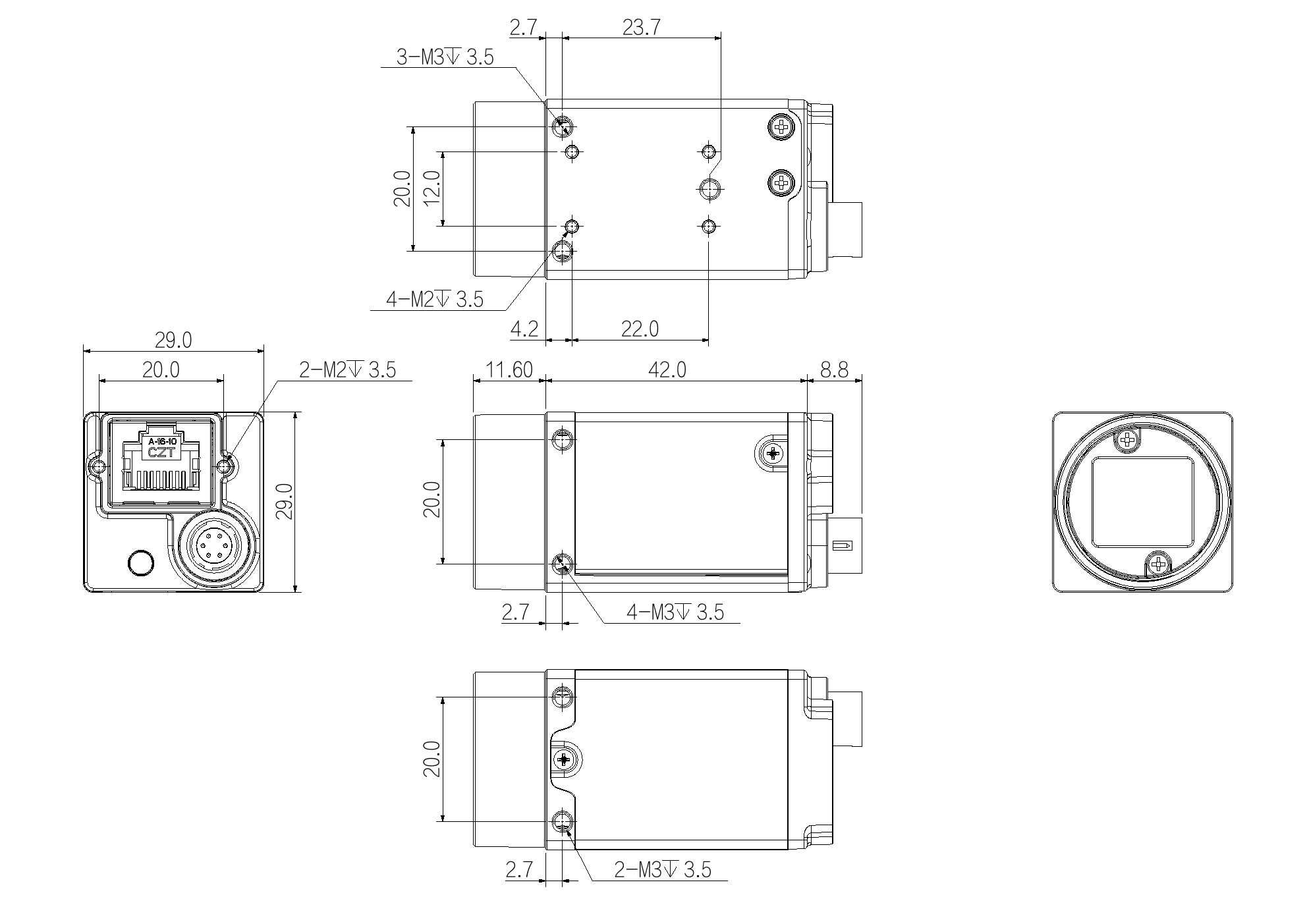

Mechanical drawing
Compact housing dimensions
29 mm×29 mm×42 mm
