AH7500CU000E
Camera 5MP

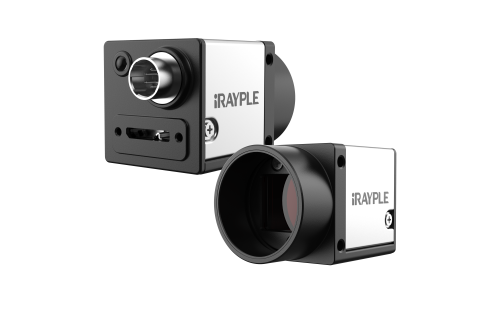

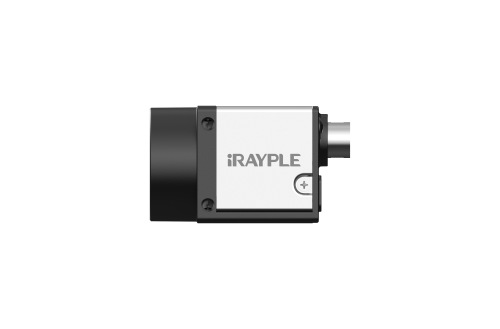

The iRayple AH7500CU000E is a 5 MP colour USB3 industrial camera. It is built on the Sony IMX264 (1.1" CMOS) sensor with a global shutter and reads out 2448 x 2048 at 68.2 fps. It takes C-mount optics and connects over USB3 (USB 3.0). It draws ≈3.2W(USB3.0 provide power supply) and operates from -30℃~+50℃. The body measures 29 mm×29 mm×30 mm and weighs Approx 85g.
- Series Type
- A Pro
- Sensor
- 1.1" CMOS
- Image Sensor
- Sony IMX264
- Shutter
- Global
Engineered for precise industrial imaging
- High-resolution global shutter image acquisition.
- Stable hardware triggering for demanding inline inspection.
- Compact metal housing designed for industrial integration.
- Compatible with standard machine vision software workflows.
Product parameters
USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface； Support ISP functions including Gamma,LUT,BlackLevel ,Correction,TargetBrightness,Contrast,FFC,Denoising Sharpness,BalanceWhite,CCM,ColorAdjustment,Multi-color temperature adjustment, multi-function interpolation adjustment etc.; Compatible with USB3.0 Vision protocol and GenICam standard; Conform to CE/UKCA/UL/KC,RoHS;
Basic
- Series Type
- A Pro
- Sensor
- 1.1" CMOS
- Image Sensor
- Sony IMX264
- Shutter
- Global
- Resolution
- 2448 x 2048
- Frame Rate
- 68.2 fps
- Bit Depth
- 12
- Type
- Color
- Pixel Size
- 3.45 μm × 3.45 μm
- Image Format
- Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed,YUV422_8_UYVY,YUV422_8,RGB8,BGR8
- Binning
- ff/onebytwo/twobyone/twobytwo/onebyfour,...
- Dynamic Range
- 73dB
- ROI
- Support
- Gain
- 1～32X
- Exposure Time
- SE: 1 μs ~ 14 μs UE: 15 μs ~ 10 sec
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
- SPC
- Support
Performance
- User Setting
- Support three sets of user-defined configurations
- Image Buffer
- 256MB
Communication
- Interface
- USB 3.0
- Digital IO
- 1× 6 pin Hirose: 1× Opto-isolated input, 1× Opto-isolated output, 1 configurable input and output
- Mount
- C-mount
Power Supply
- Input Voltage
- Power supply via USB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V
- Power
- ≈3.2W(USB3.0 provide power supply)
Environment
- Operating Temperature
- -30℃~+50℃
- Storage Temperature
- -30℃~+80℃
Mechanical
- Dimensions
- 29 mm×29 mm×30 mm (not including lens mount and rear case connector)
- Weight
- Approx 85g

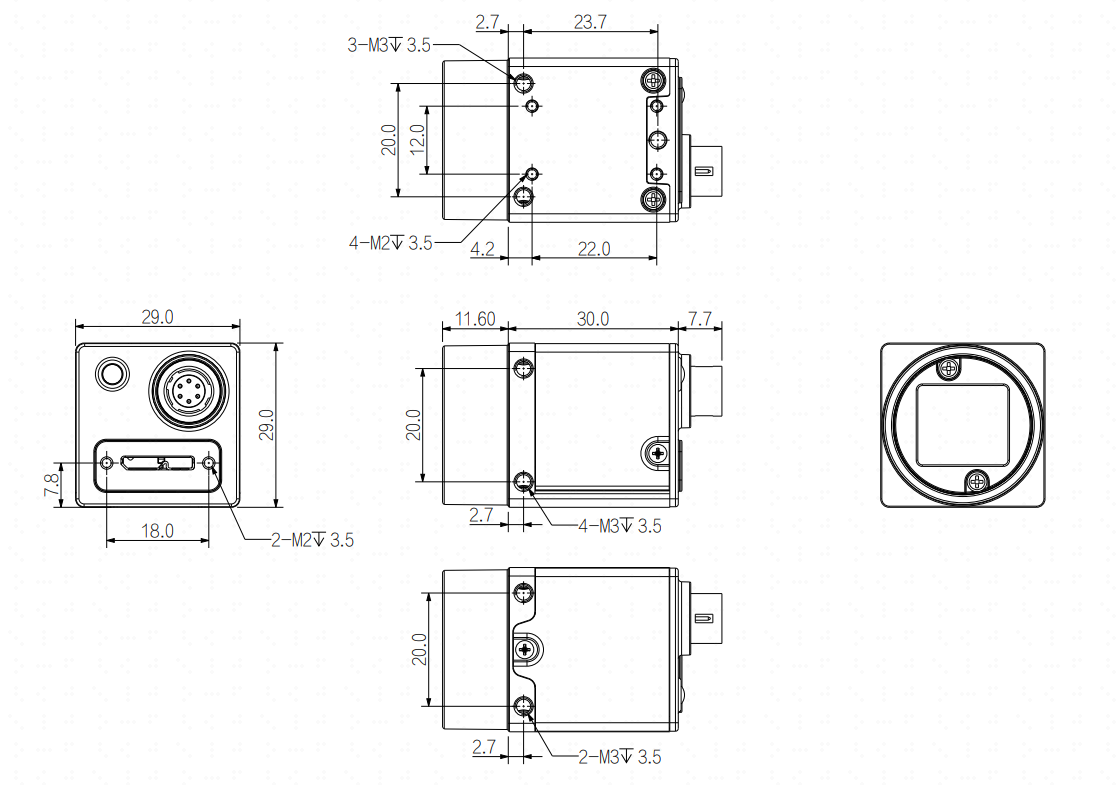

Compact housing dimensions
29 mm×29 mm×30 mm
