Industrial Camera
iRayple · Industrial Camera
AH5B57MP000E
Camera 25MP
The iRayple AH5B57MP000E is a 26 MP monochrome CoaXPress industrial camera. It is built on the Gpixel - GMAX0505 (1.1" CMOS) sensor with a global shutter and reads out 5120 x 5120 at 41.85 fps. It takes C-mount optics and connects over CoaXPress (CXP-12). It draws 5.2 W from PoE/ DC 9V~24V power supply via Hirose interface and operates from -30℃~+50℃. The body measures 29 mm × 29 mm × 48.3 mm and weighs 90 g.
- Series Type
- A Pro
- Sensor
- 1.1" CMOS
- Image Sensor
- Gpixel - GMAX0505
- Shutter
- Global
In stockModel: AH5B57MP000E
Performance highlights
Engineered for precise industrial imaging
- CXP-12 interface, 1×12.5Gbps theoretical transfer bandwidth
- Support Software Trigger/Hardware Trigger/Free Run mode
- Support user-defined ROI, horizontal mirror and vertical mirror
- Support PoCXP and DC 9-24V power supply
- Conforms to CoaXPress protocol and GenICam standard
- Conform to CE、KC and RoHS
Technical data
Product parameters
The A Pro area scan products are designed with a compact and lightweight form, meanwhile offering high industrial performance.
Basic
- Series Type
- A Pro
- Sensor
- 1.1" CMOS
- Image Sensor
- Gpixel - GMAX0505
- Shutter
- Global
- Resolution
- 5120 x 5120
- Frame Rate
- 41.85 fps
- Bit Depth
- 12
- Type
- Mono
- Pixel Size
- 2.5 μm × 2.5 μm
- Image Format
- Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed,YUV422_8_UYVY,YUV422_8,RGB8,BGR8
- Binning
- Support
- Dynamic Range
- 64.3 dB
- ROI
- Support
- X Flip
- Support
- Y Flip
- Support
- Gain
- Digital gain: 1x～32x
- Exposure Time
- 2 μs～15 s
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
- SPC
- Support
Performance
- User Setting
- Support three sets of user-defined configurations
Communication
- Interface
- CXP-12
- Mount
- C-mount
Power Supply
- Input Voltage
- PoE/ DC 9V~24V power supply via Hirose interface
- Power
- 5.2 W
Environment
- Operating Temperature
- -30℃~+50℃
- Storage Temperature
- -30℃~+80℃
Mechanical
- Dimensions
- 29 mm × 29 mm × 48.3 mm (not including rear case connector)
- Weight
- 90 g

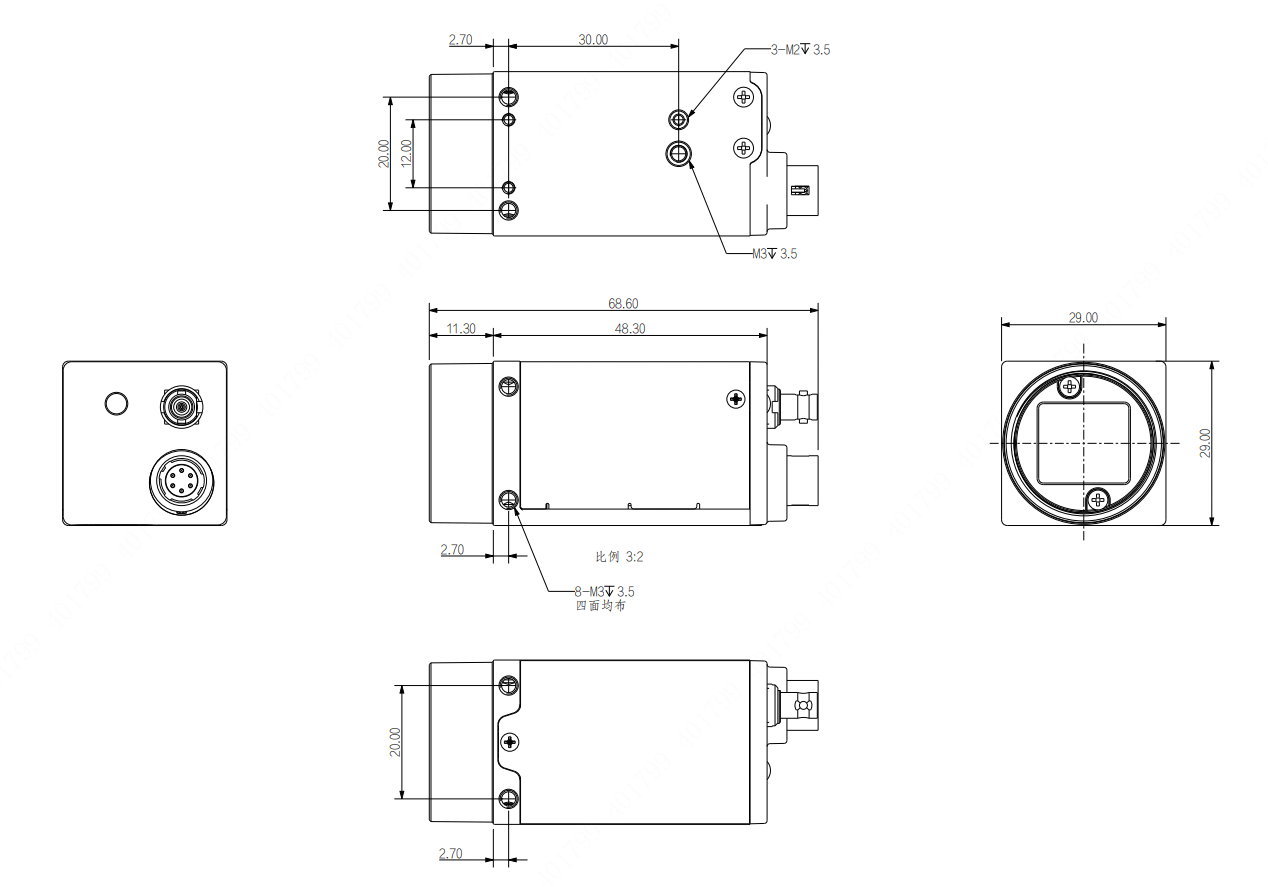

Mechanical drawing
Compact housing dimensions
29 mm × 29 mm × 48.3 mm
