Industrial CameraCamera 25MP - AH5B57MG200E
iRayple · Industrial Camera

AH5B57MG200E

Camera 25MP

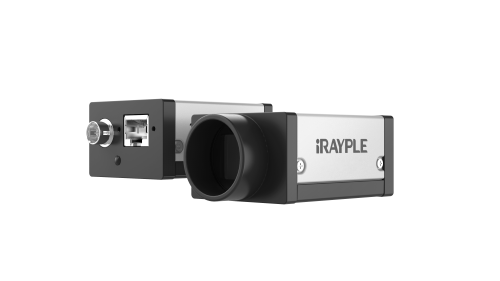

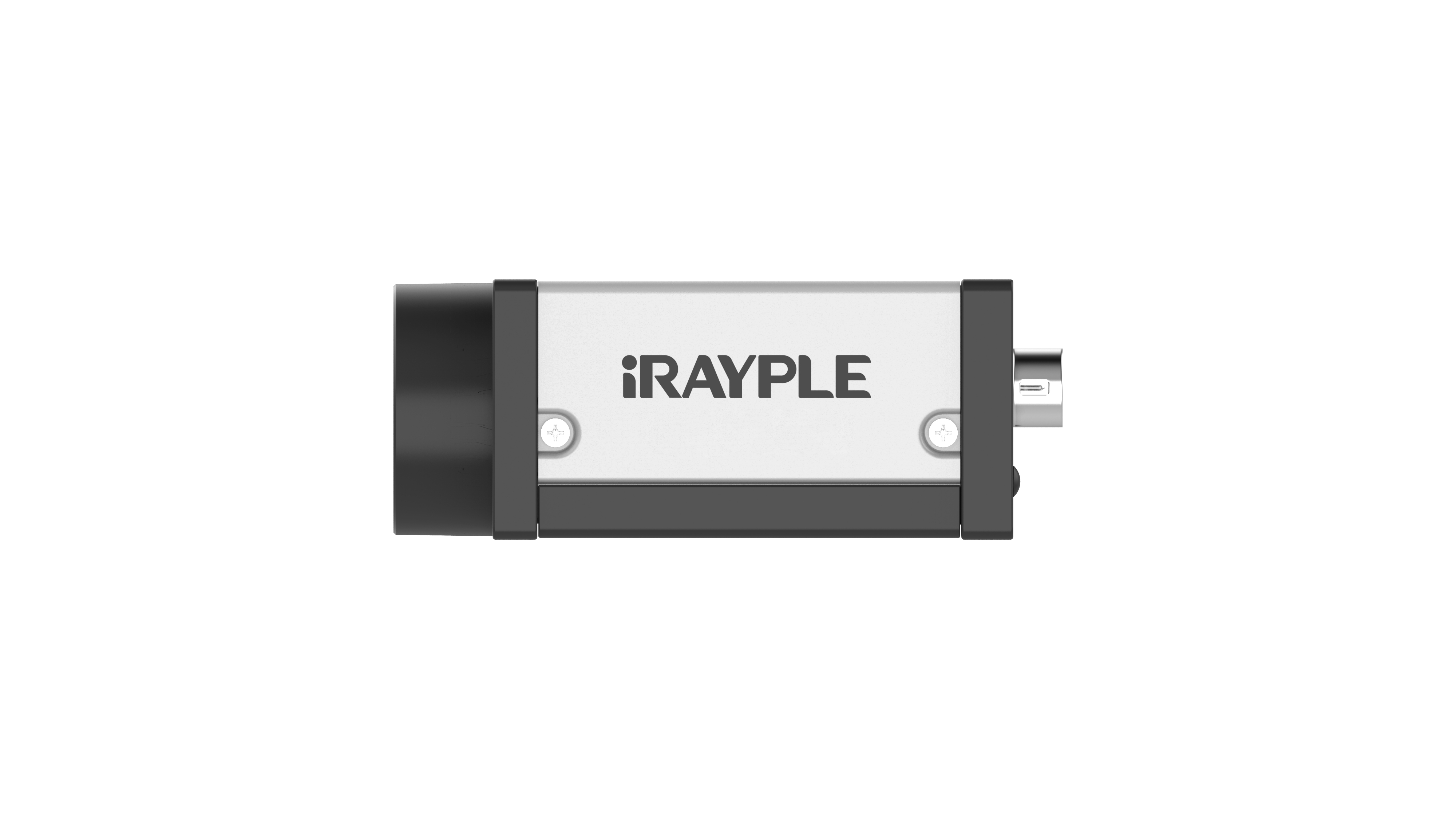

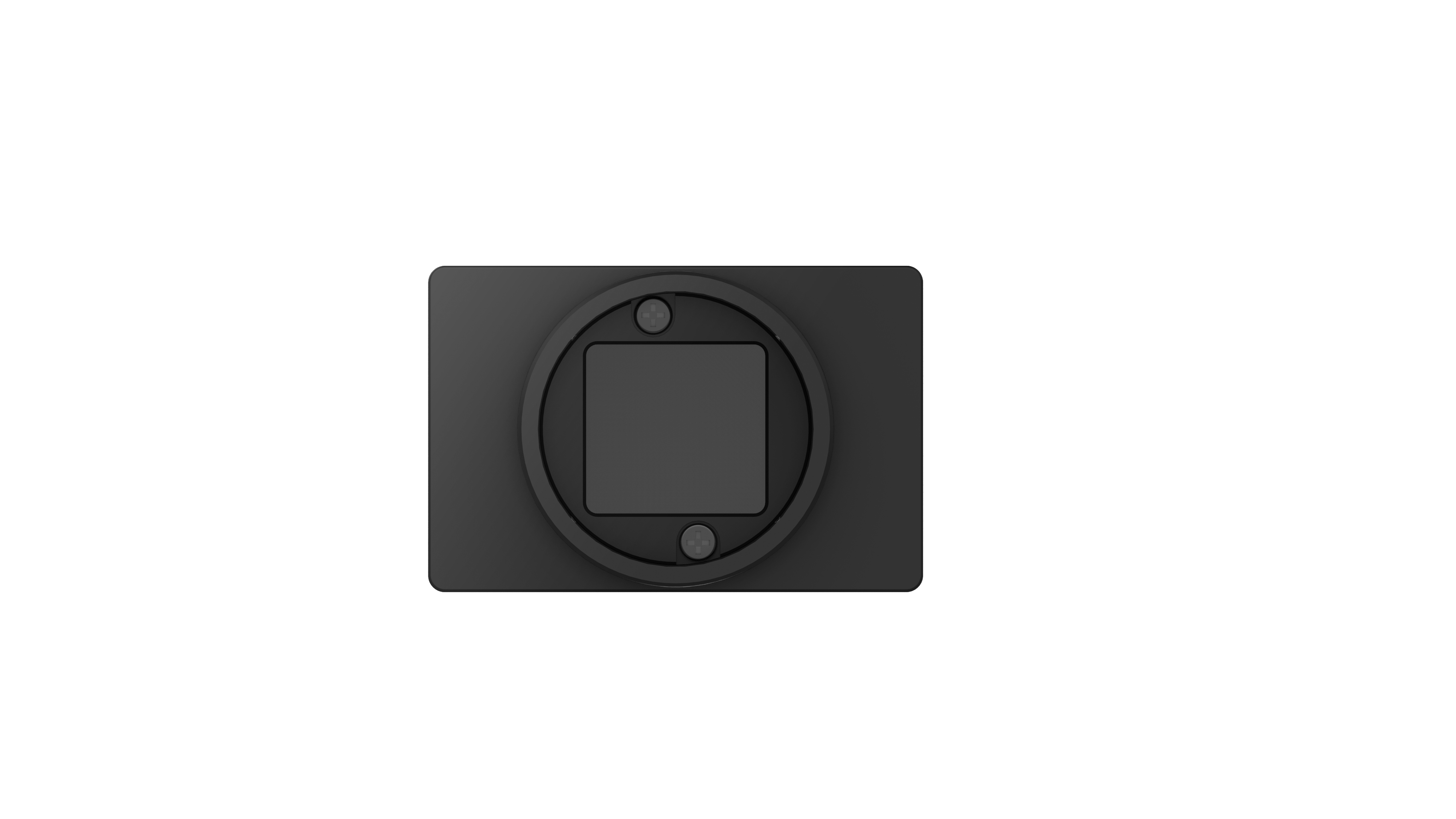

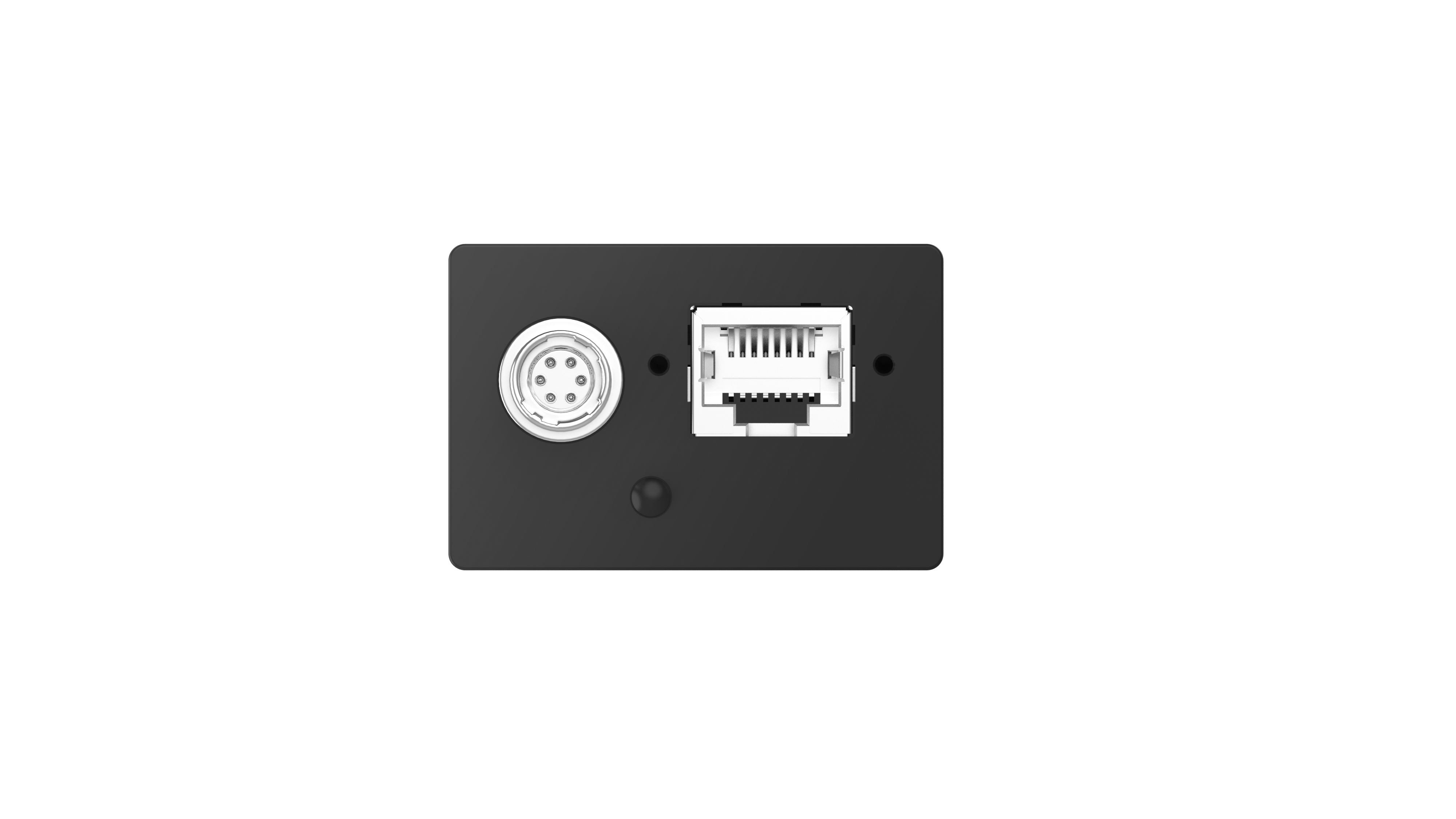

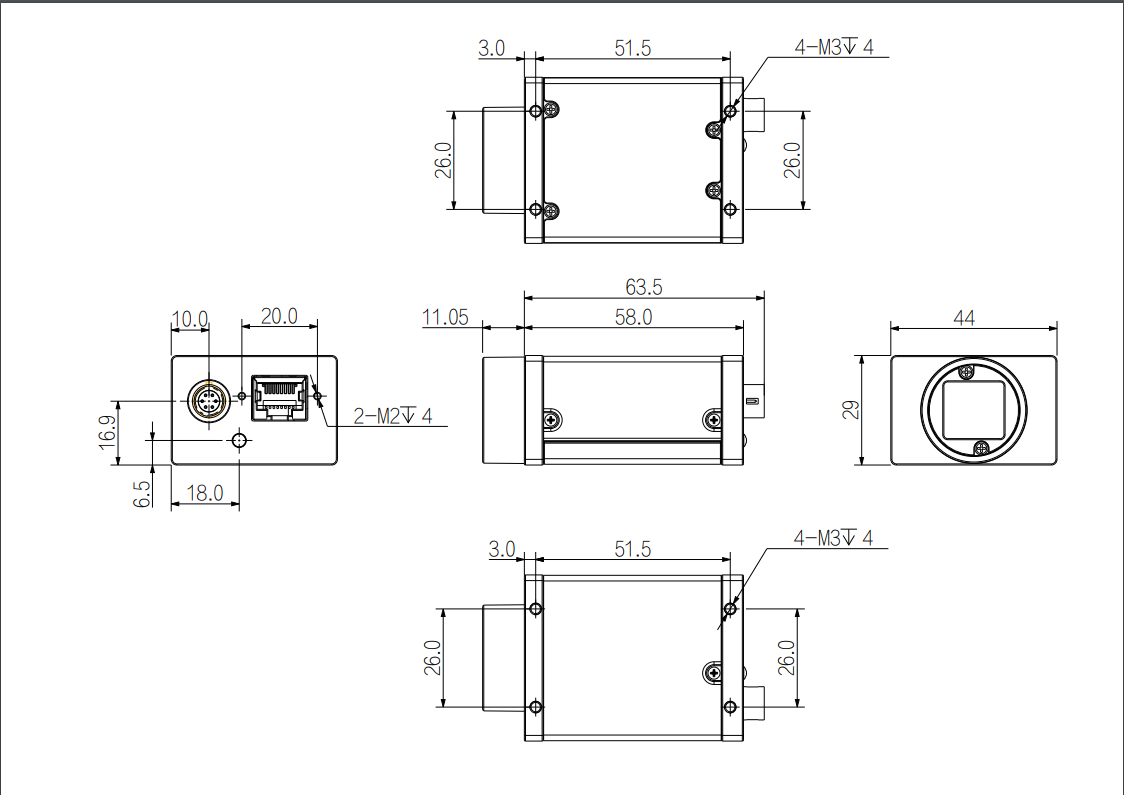

The iRayple AH5B57MG200E is a 26 MP monochrome GigE industrial camera. It is built on the Gpixel - GMAX0505 (1.1" CMOS) sensor with a global shutter and reads out 5120 x 5120 at 4.5 fps. It takes C-mount optics and connects over GigE (GigE, PoE). It draws 12 VDC≈3.10W(Typ. ) from PoE/ DC 9V~24V power supply via Hirose interface and operates from 0℃~+50℃. The body measures 29 mm×44 mm×58 mm and weighs 140g.

Series Type
A Pro
Sensor
1.1" CMOS
Image Sensor
Gpixel - GMAX0505
Shutter
Global
In stockModel: AH5B57MG200E
Get a quote
Performance highlights

Engineered for precise industrial imaging

  • Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m
  • 256MB on-board cache for data transmission or image resend
  • upport Software Trigger/Hardware Trigger/Free Run Mode
  • Support ISP functions including Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast,FFC,Denoising Sharpness,BalanceWhite,CCM,ColorAdjustment,Multi-color temperature adjustment, multi-function interpolation adjustment etc.
  • Support multiple image data formats output/ROI/Binning(Including Pixel arbitrary scaling)/Mirror/ AutoFunction/Compress/Sequencer etc.
  • Conform to GigE Vision V2.0 protocol and GenICam standard
  • Conform to CE/UKCA/UL/KC,RoHS
AH5B57MG200EGet a quote
