AH5B57CU200E
Camera 25MP
The iRayple AH5B57CU200E is a 26 MP colour USB3 industrial camera. It is built on the Gpixel - GMAX0505 (1.1" CMOS) sensor with a global shutter and reads out 5120 x 5120 at 14.7 fps. It takes C-mount optics and connects over USB3 (USB 3.0). It draws ≈3.7W(USB3.0 provide power supply) and operates from -30℃~+50℃. The body measures 29 mm×44 mm×58 mm and weighs Approx 140g.
- Series Type
- A Pro
- Sensor
- 1.1" CMOS
- Image Sensor
- Gpixel - GMAX0505
- Shutter
- Global
In stockModel: AH5B57CU200E
Performance highlights
Engineered for precise industrial imaging
- USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface；
- Compact size of 29mmx44mmx58mm
- 256MB on-board cache for data transmission or image resend
- Support Software Trigger/Hardware Trigger/Free Run Mode
- Support ISP functions including Gamma,LUT,BlackLevel,Correction,TargetBrightness,Contrast,FFC,Denoising Sharpness etc.
- Support multiple image data formats output,ROI,Binning(Including Pixel arbitrary scaling),Mirror, AutoFunction,Sequencer( Gain、Exposure) etc.
- Compatible with USB3.0 Vision protocol and GenICam standard
- Conform to CE/UKCA/UL/KC,RoHS
Technical data
Product parameters
The A Pro area scan products are designed with a compact and lightweight form, meanwhile offering high industrial performance.
Basic
- Series Type
- A Pro
- Sensor
- 1.1" CMOS
- Image Sensor
- Gpixel - GMAX0505
- Shutter
- Global
- Resolution
- 5120 x 5120
- Frame Rate
- 14.7 fps
- Bit Depth
- 12
- Type
- Color
- Pixel Size
- 2.5 μm × 2.5 μm
- Image Format
- Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed,YUV422_8_UYVY,YUV422_8,RGB8,BGR8
- Binning
- off/onebytwo/twobyone/twobytwo/onebyfour/fourbyone/...
- Dynamic Range
- 64 dB
- ROI
- Support
- X Flip
- Support
- Y Flip
- Support
- Gain
- 1～32X
- Exposure Time
- NE: 5μs~10sec
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
- SPC
- Support
Performance
- User Setting
- Support three sets of user-defined configurations
- Image Buffer
- 256MB
Communication
- Interface
- USB 3.0
- Mount
- C-mount
Power Supply
- Input Voltage
- Power supply via USB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V
- Power
- ≈3.7W(USB3.0 provide power supply)
Environment
- Operating Temperature
- -30℃~+50℃
- Storage Temperature
- -30℃~+80℃
Mechanical
- Dimensions
- 29 mm×44 mm×58 mm (not including lens mount and rear case connector)
- Weight
- Approx 140g

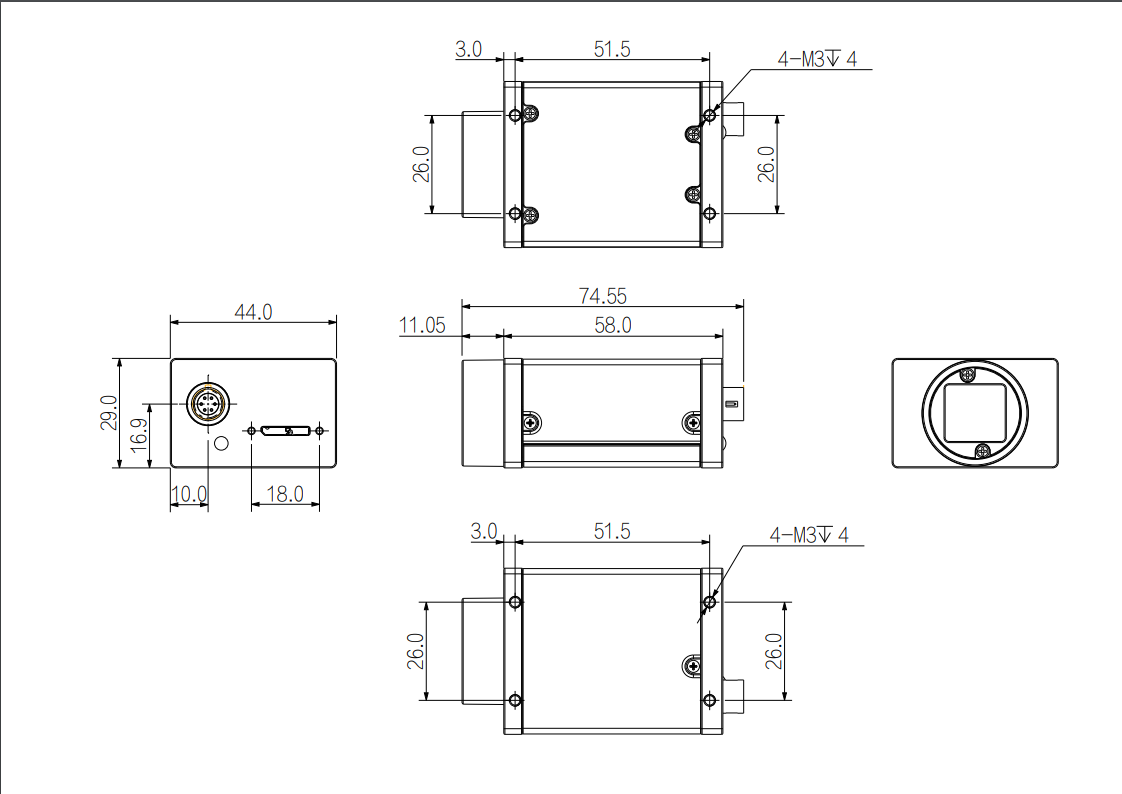

Mechanical drawing
Compact housing dimensions
29 mm×44 mm×58 mm
