Driver
Inovance · Driver
SV660NS2R8I-INT
Driver SV660

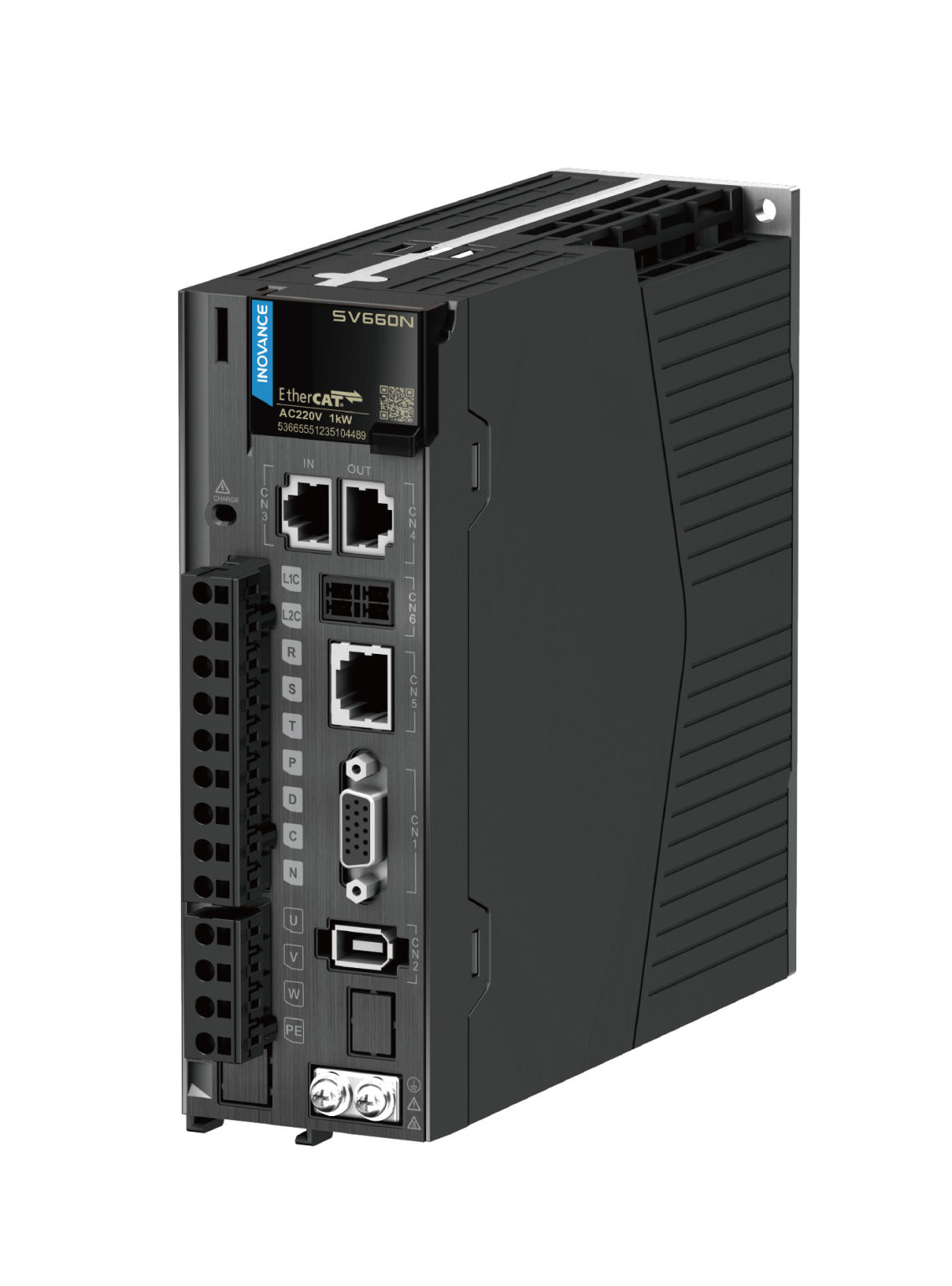

The Inovance SV660NS2R8I-INT is an SV660 Series driver. Rated specifications: Control Mode Network, Encoder Slot 1, Communication EtherCAT. It draws 400 W from Single-phase 200 ~ 240 VAC, 50/60 Hz and operates from 0 ~ 40°C. The body measures 170mm x150mm x 40mm.
- Series Type
- SV660 Series
- Model
- SV660NS2R8I-INT
- Power
- 400 W
- Control Mode
- Network
In stockModel: SV660NS2R8I-INT
Performance highlights
Engineered for precise industrial imaging
- Compact size
- Safety and stability
- Complete certifications
- Ergonomic design and ease of use
- Excellent performance
- Intelligentcomputing
Technical data
Product parameters
SV660 Series Flexibly Adapts to Various Control Demands
Basic
- Series Type
- SV660 Series
- Model
- SV660NS2R8I-INT
- Power
- 400 W
- Control Mode
- Network
- Communication
- EtherCAT
- Encoder Slot
- 1
- STO
- Integrate
Electrical
- Input Voltage
- Single-phase 200 ~ 240 VAC, 50/60 Hz
- Rated Current
- 2.8 A
- Peak Current
- 10.1 A
- Control Loop
- Support
Environment
- Operating Temperature
- 0 ~ 40°C
- Protection Class
- IP20
Mechanical
- Dimensions
- 170mm x150mm x 40mm

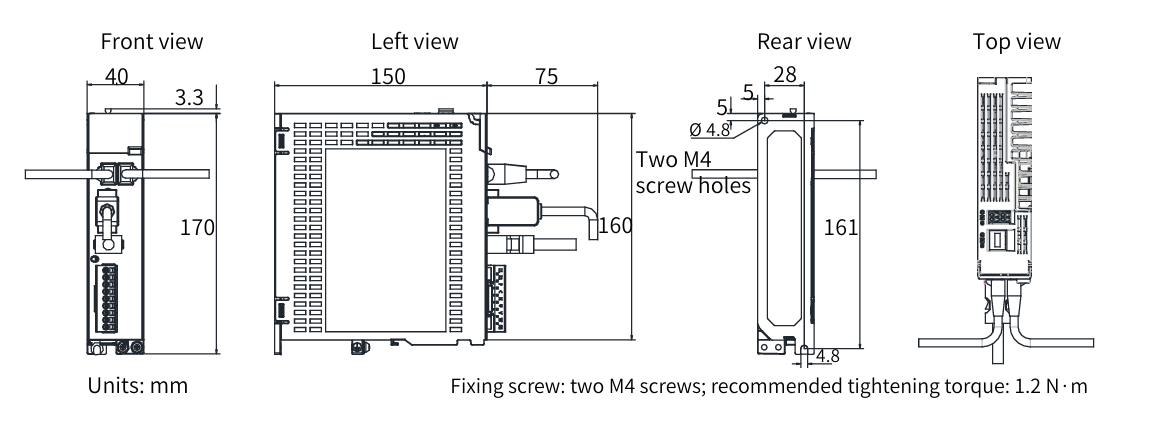

Mechanical drawing
Compact housing dimensions
170mm x150mm x 40mm
