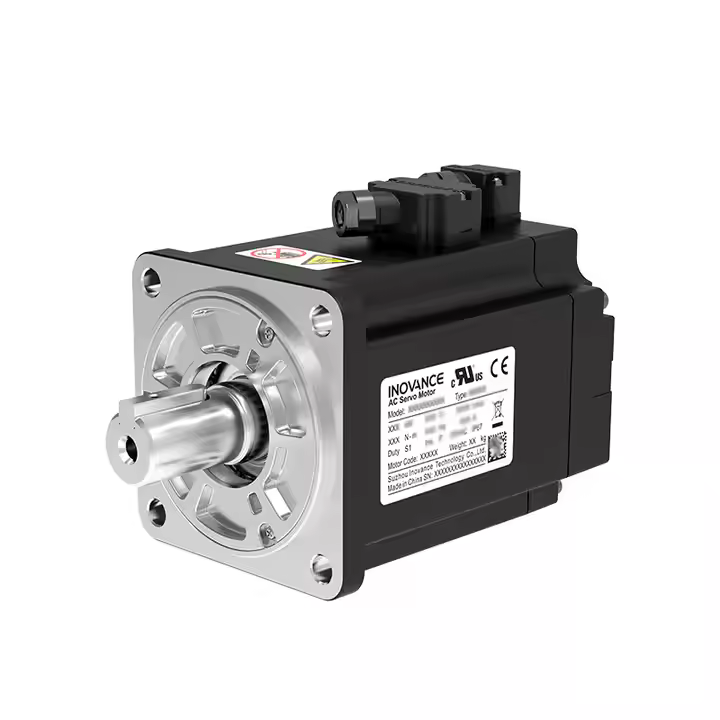

MS1H1- 40B30CB-A631R
Servo Motor
The Inovance MS1H1- 40B30CB-A631R is a servo motor. It draws 0.4 kW from 220V.
- Series Type
- MS1-R Series
- Model
- MS1H1- 40B30CB-A631R
- Power
- 0.4 kW
- Resolution
- 26 bits
In stockModel: MS1H1- 40B30CB-A631R
Performance highlights
Engineered for precise industrial imaging
- Smaller footprint with torque output unchanged, max.reduction of length reaching 29%
- Optimized electromagnetic circuit to reduce temperature rise Flange size 60 & 80: Temperature rise reduced by 20K compared with previous motors
- Ultra-low inertia available for motors with flange size 60/80 to
- better fit applications requiring quick jog control
Technical data
Product parameters
Basic
- Series Type
- MS1-R Series
- Model
- MS1H1- 40B30CB-A631R
- Power
- 0.4 kW
- Resolution
- 26 bits
Motor
- Rated Speed
- 3000 rpm
- Rated Torque
- 1.27 Nm
- Peak Torque
- 4.45 Nm
- Inertia
- 0.145 kg·cm2
- Flange Size
- 60 mm
Power Supply
- Input Voltage
- 220V
- Rated Current
- 4.6A
Mechanical drawing
Compact housing dimensions
