Inverter
Inovance · Inverter

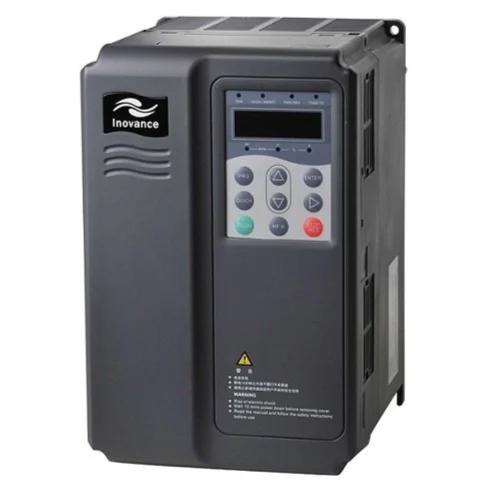

MD290T0.7G-INT
Inverter MD290
The Inovance MD290T0.7G-INT is an MD290 inverter. Rated specifications: Rated Current 2.1A, Frequency Max 500 Hz, Input Type Three-phase 380 to 480 Vac -15% to +10%, Output Type Three-phase 380 to 480 Vac. It draws 0.7kW. The body measures 200mm x 130mm x 152mm and weighs 1.6 kg.
- Series Type
- MD290
- Model
- MD290T0.7G-INT
- Power
- 0.7kW
- Rated Current
- 2.1A
In stockModel: MD290T0.7G-INT
Performance highlights
Engineered for precise industrial imaging
- Open loop control
- Automatic torque boost
- Slip compensation
- Flexible programmable I/Os
- User programmable functions
- Built-in dynamic braking unit
Technical data
Product parameters
Basic
- Series Type
- MD290
- Model
- MD290T0.7G-INT
- Power
- 0.7kW
- Rated Current
- 2.1A
- Frequency
- Max 500 Hz
- Input Type
- Three-phase 380 to 480 Vac -15% to +10%
- Output Type
- Three-phase 380 to 480 Vac (proportional to input voltage)
- Brake Control
- Integrate
Control
- Control Mode
- Frequency - sensorless vector
- Communication
- Modbus RTU - PROFIBUS-DP - CANopen - PROFINET
- Overload Capacity
- 150% for G type and 110% for P type for 60 s
Power Supply
- Supply Voltage
- Three-phase 380 to 480 Vac
Mechanical
- Dimensions
- 200mm x 130mm x 152mm
- Weight
- 1.6 kg
Mechanical drawing
Compact housing dimensions
200mm x 130mm x 152mm
