Industrial Robots
Inovance · Industrial Robots

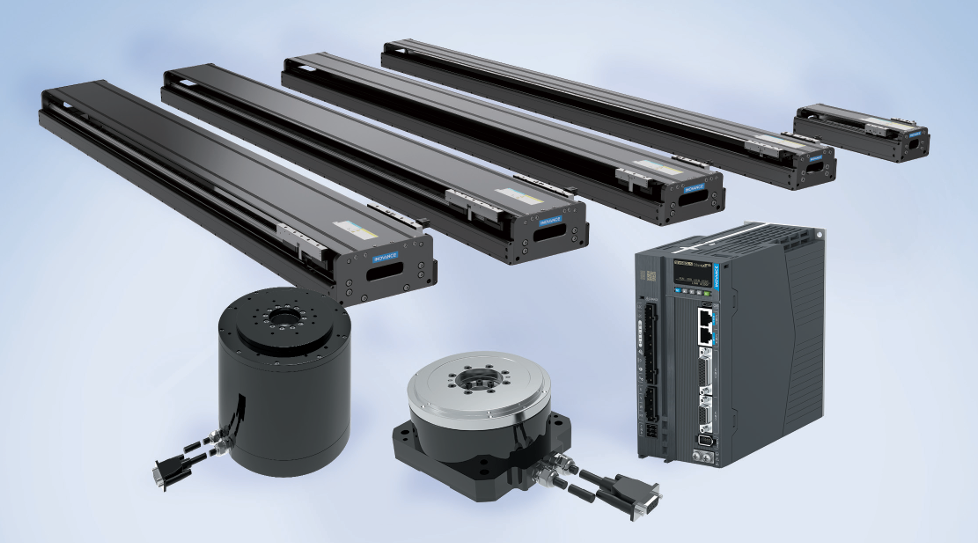

LMC118-130
Linear Motor
The Inovance LMC118-130 is an LMC Series industrial robot. Rated specifications: Robot Type Linear Motor, Payload 11.4 kg, Reach 500mm, Repeatability 1 μm.
- Series Type
- LMC Series
- Model
- LMC118-130
- Robot Type
- Linear Motor
- Payload
- 11.4 kg
In stockModel: LMC118-130
Performance highlights
Engineered for precise industrial imaging
- High-resolution global shutter image acquisition.
- Stable hardware triggering for demanding inline inspection.
- Compact metal housing designed for industrial integration.
- Compatible with standard machine vision software workflows.
Technical data
Product parameters
Basic
- Series Type
- LMC Series
- Model
- LMC118-130
- Robot Type
- Linear Motor
- Payload
- 11.4 kg
- Speed
- 2500 mm/s
- Reach
- 500mm
- Repeatability
- 1 μm
- Linear Type
- Magnetic
Controller
- Controller
- Inovance or Third-party support (encoder type)
- Controller Model
- SV680NS5R5I-GINT

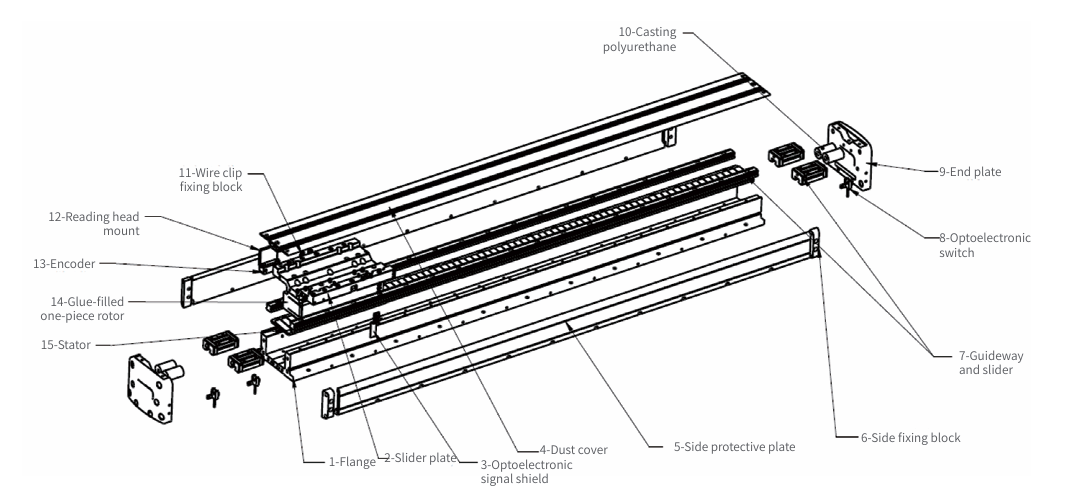

Mechanical drawing
Compact housing dimensions
Support files
