HWAINTEK · Rackmount IPC

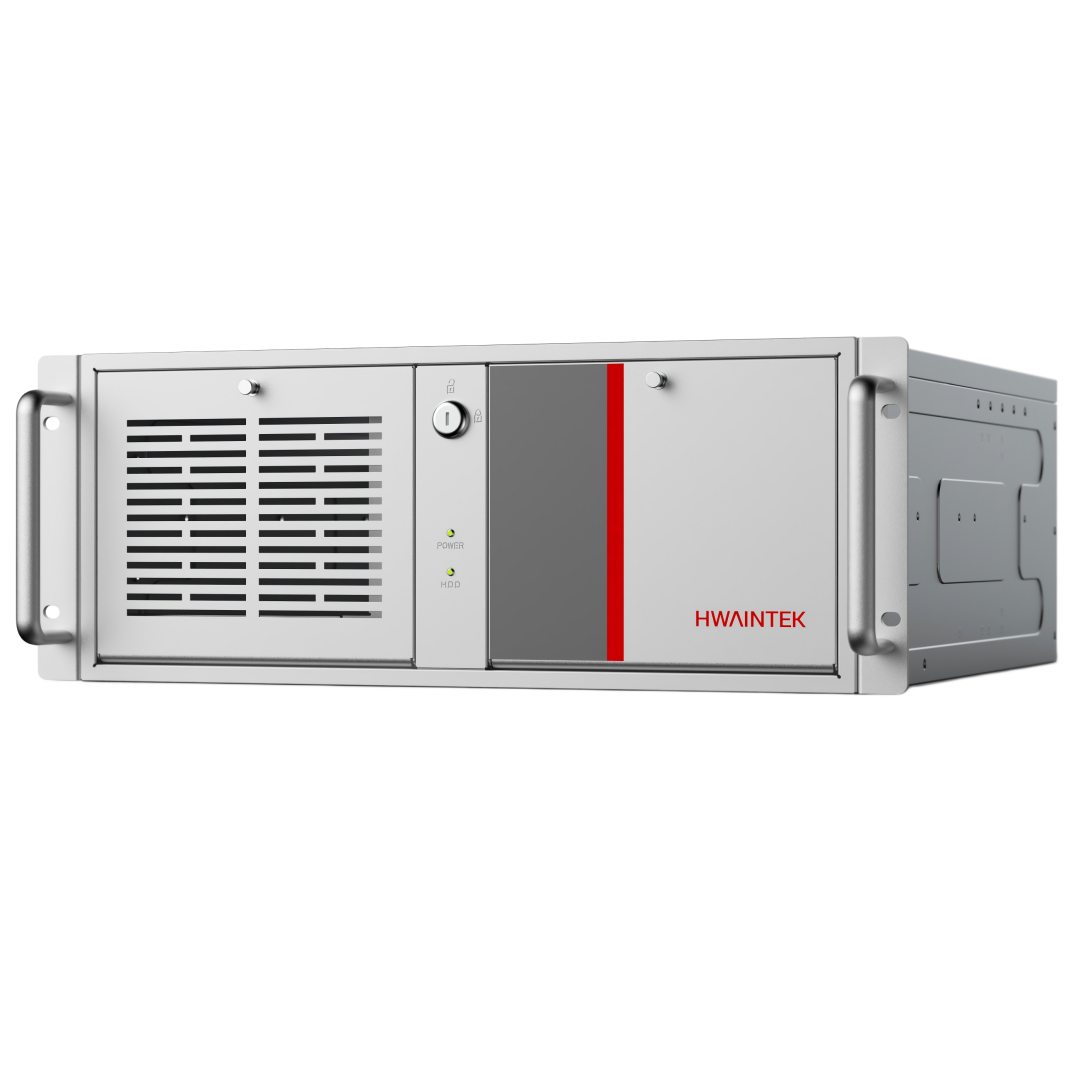

HRC-UA-Q670/I7-12700
IPC Rack
The HWAINTEK HRC-UA-Q670/I7-12700 is an HRC Series rackmount IPC. Rated specifications: System OS Windows, Linux, Installation rack-mounted industrial computer standard, Relative Humidity 10 ~ 95% @ 40°C ( non-condensing). It draws 850W ATX from 220V AC，Three-hole pin plug and operates from 0~60°C，With 0.7ms airflow. The body measures 176mm x 430mm x 471.4mm and weighs 11.8kg.
- Series
- HRC Series
- Model
- HRC-UA-Q670/I7-12700
- Mother Board
- Q670
- CPU
- Intel® i7-12700 Core™ Processors
In stockModel: HRC-UA-Q670/I7-12700
Performance highlights
Engineered for precise industrial imaging
- Adopt Intel Q670 chipset
- Support vPro, AMT, RAID, TPM 2.0, Case Opent
- 2*PCIe x16, 4*PCIe x4, 1*PCI
Technical data
Product parameters
Large-scale OLED fab control/Multi-GPU AI inspection/Multi-channel motion control/Factory central MES server/Automated optical inspection workstation/Semiconductor production host/High-speed image recording/Test bench main controller/Industrial deep learn
System Parameter
- Series
- HRC Series
- Model
- HRC-UA-Q670/I7-12700
- Mother Board
- Q670
- CPU
- Intel® i7-12700 Core™ Processors
- RAM
- 32GB UDIMM DDR4
- Storage
- 1TB M.2 2280
- Display
- 1x HDMI，MAX 4096 x 2160@30 Hz；1x DVI-D，MAX 1920 x 1200@60Hz；1x VGA，MAX 1920 x 1200@60Hz
- Ethernet Port
- 1x LAN Intel® I219-V； 1x LAN Intel® I225-V
- COM Port
- 1x RS-232；expandable 2x RS-485/232、3x RS232
- USB Port
- 6x USB3.0；2x USB2.0
- Audio
- 1x Line-in、1x Line-out、1x Mic-in，Realtek Audio HDA Codec
Internal Module
- PCIe
- 1x PCIe 16x or 8x（4.0); 1x PCIe 16x or 8x（4.0); 3x PCIe 4x（4.0); 1x PCIe 4x（3.0）
- PCI
- 1 x PCI
- M.2
- 1 x M.2 E-Key 2230， support WIFI +Bluetooth Module
- GPIO
- None Support
Other
- Remote
- None Support
- RESET
- None Support
OS
- System OS
- Windows, Linux
Power Supply
- Input Voltage
- 220V AC，Three-hole pin plug
- Power
- 850W ATX
Certificates
- Certificates Support
- CE、FCC
Environment
- Storage Temperature
- -25°C ~70°C, 60°C @ 95% ( non-condensing)
- Operating Temperature
- 0~60°C，With 0.7ms airflow
- Relative Humidity
- 10 ~ 95% @ 40°C ( non-condensing)
Mechanical
- Installation
- rack-mounted industrial computer standard
- Dimensions
- 176mm x 430mm x 471.4mm
- Weight
- 11.8kg
Mechanical drawing
Compact housing dimensions
