HPM132-AC215M
Panel HPM

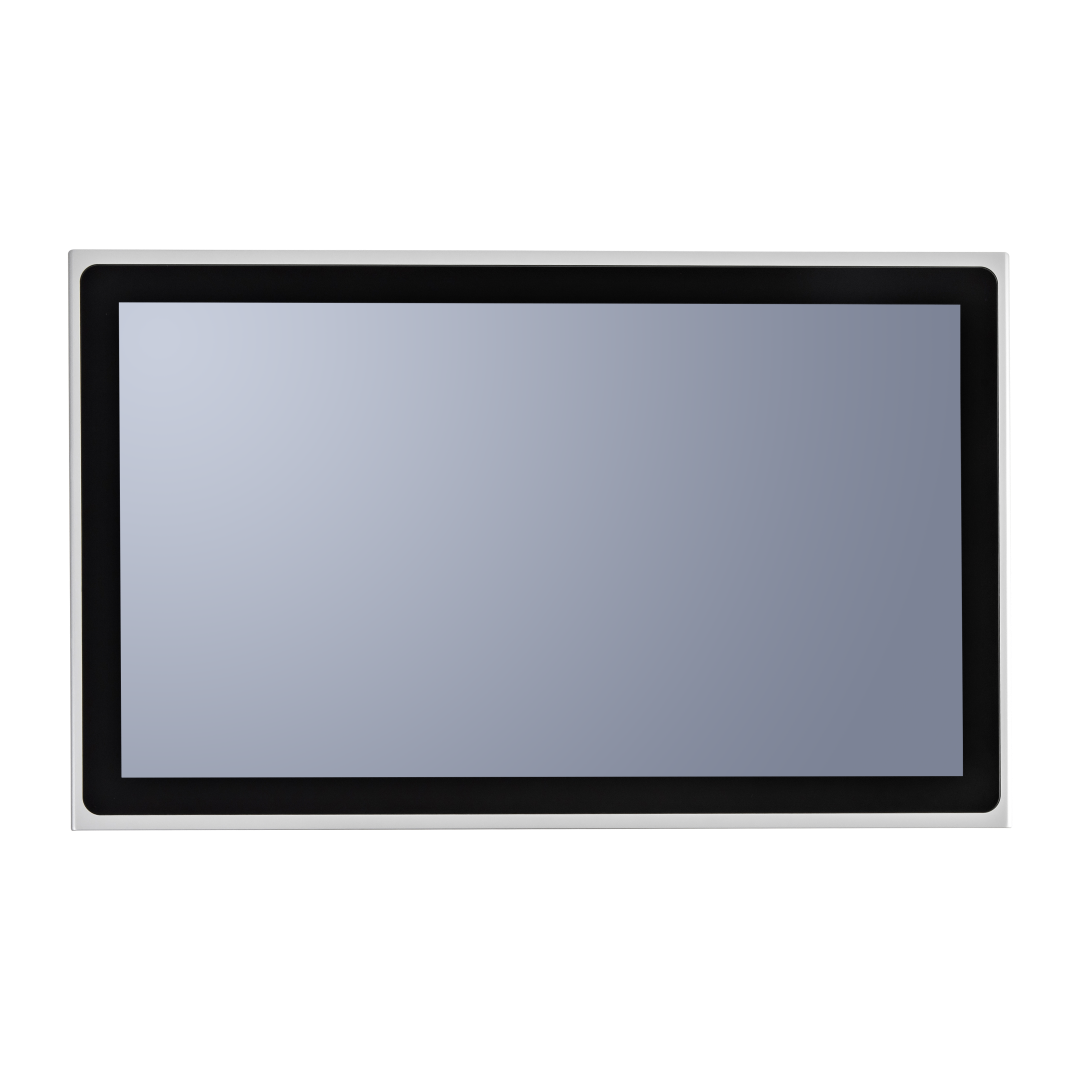

The HWAINTEK HPM132-AC215M is an HPM Series panel. Rated specifications: System OS Windows® 7/10/11,Linux, USB Port 4 x USB3.0, 2 x USB2.0. It runs on DC 9~36V 2-pin Phoenix Connector and operates from 0℃~50℃. The body measures 536.2mm x 329.4mm x 62.7mm and weighs 8.5KG.
- Series
- HPM Series
- Model
- HPM132-AC215M
- CPU
- Intel® i7-1195G7 Core™ Processors
- RAM
- 8 GB DDR4-3200MHz SO-DIMM
In stockModel: HPM132-AC215M
Performance highlights
Engineered for precise industrial imaging
- LCD+HDMI dual displays
- IP65-rated front panel

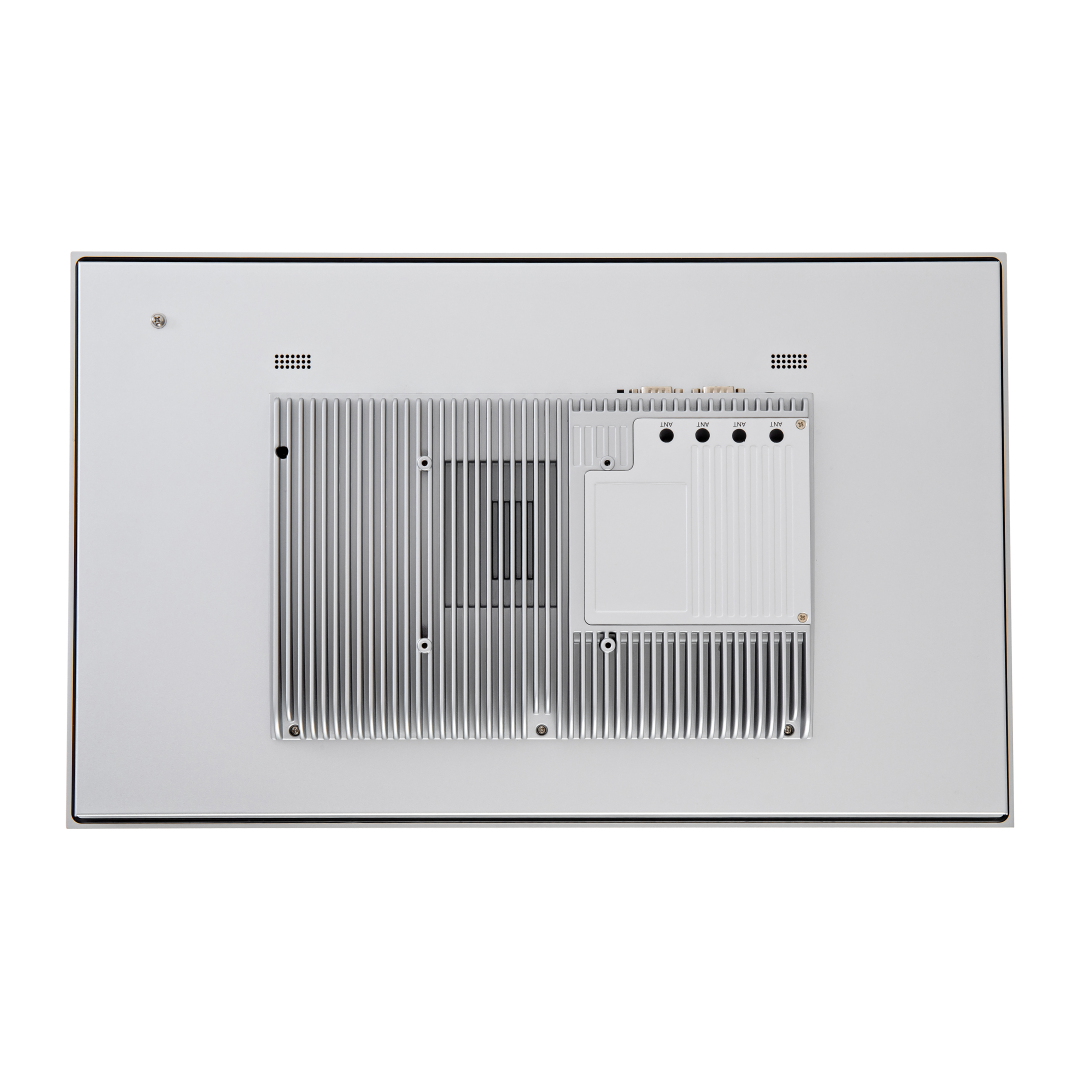

- Fanless design with aluminum alloy enclosure
Technical data
Product parameters
Production line HMI/SCADA monitoring/MES operation terminal/Food processing control/Pharmaceutical workshop panel/Water treatment control/EV charging station terminal/Automotive assembly control/Warehouse management touch terminal/Smart energy substation
System Parameter
- Series
- HPM Series
- Model
- HPM132-AC215M
- CPU
- Intel® i7-1195G7 Core™ Processors
- RAM
- 8 GB DDR4-3200MHz SO-DIMM
- Storage
- 256GB M.2 2280 SSD (SATA)
- Display
- Display: 21.5”TFT-LCD - Resolution: 1920x1080 - Max.Colors: 16.7M - Luminance: 300 cd/m2 - Back Light: LED

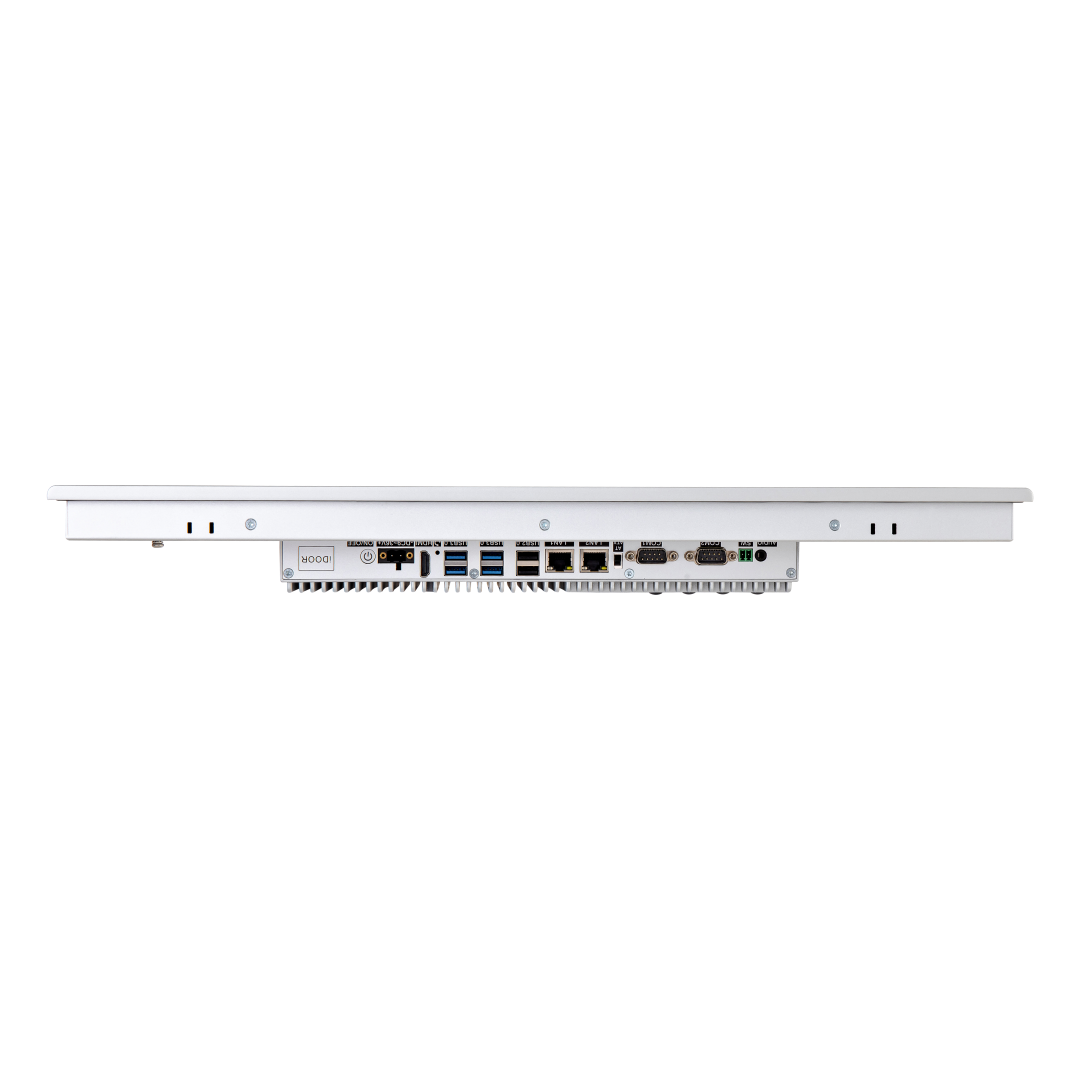

- Ethernet Port
- 2 x GbE RJ45 intel i210-AT
- COM Port
- 2 x DB-9 COM1& COM2, RS-232/485
- USB Port
- 4 x USB3.0, 2 x USB2.0
- Audio
- 1 x Audio Line-out/Mic-in
Internal Module
- Mini PCIe
- Mini-PCle x 1 full size with SIM Card for 3G/4G
- M.2
- M.2 Key E x 1 for WIFI/BT OR M.2 Key B x 1 for 5G
- GPIO
- None Suportt
OS
- System OS
- Windows® 7/10/11,Linux
Power Supply
- Input Voltage
- DC 9~36V 2-pin Phoenix Connector
Environment
- Storage Temperature
- -20℃~60℃
- Operating Temperature
- 0℃~50℃
- Relative Humidity
- 10~95%@30℃,non-condensing
Mechanical
- Installation
- VESA 100/ Panel Mount
- Dimensions
- 536.2mm x 329.4mm x 62.7mm
- Weight
- 8.5KG
Mechanical drawing
Compact housing dimensions
536.2mm x 329.4mm x 62.7mm
