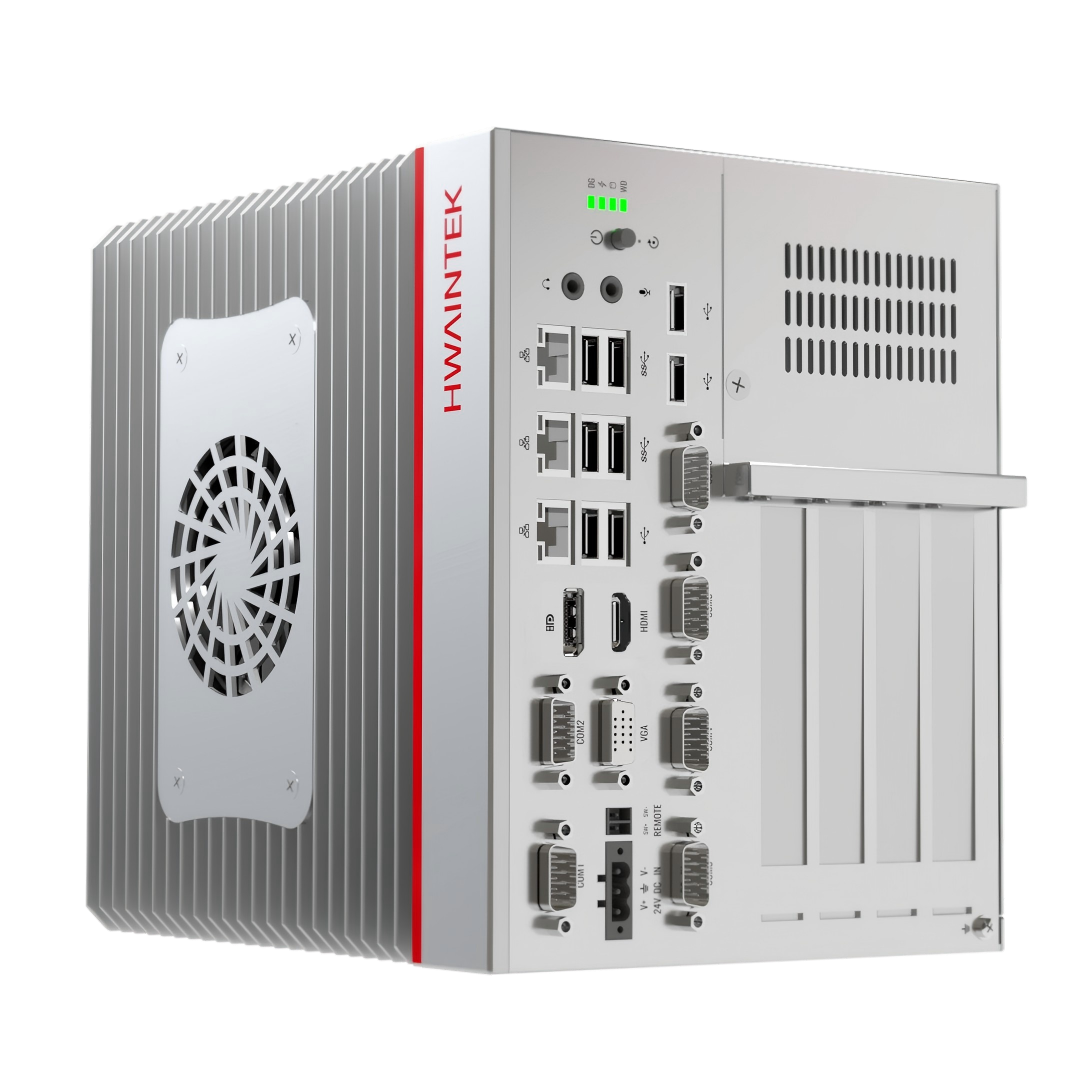

HC8034-M12480
IPC BOX
The HWAINTEK HC8034-M12480 is an HC Series embedded IPC. Rated specifications: System OS Windows 10/11,centos 8, ubuntu 20.04/22.04/24.04, Installation wall-mounted installation, Relative Humidity 10 ~ 95% @ 40°C (non-condensing). It draws 240W from DC 24V (Optional 9-36V Configuration) and operates from 0~50°C. The body measures 220mm x 226mm x 176mm and weighs 4.3kg.
- Series
- HC Series
- Model
- HC8034-M12480
- Mother Board
- Q670
- CPU
- Intel® i7-12700 Core™ Processors
In stockModel: HC8034-M12480
Performance highlights
Engineered for precise industrial imaging
- Designed for continuous operation in industrial environments, providing high stability, reliability, and long-term operating performance.
- The Box IPC provides high-speed interfaces and processing performance for connecting industrial cameras, lighting controllers, vision sensors, and image-processing systems.
- With appropriate motion-control interfaces or PCIe motion cards, the IPC can communicate with servo drives, motion controllers, linear stages, and robotic systems.
- Selected models use a fanless cooling design, reducing dust accumulation, mechanical failure, and maintenance requirements. Rugged industrial housings also provide better protection against vibration and harsh operating conditions.

Technical data
Product parameters
Machine vision AI computing/GPU defect inspection/Multi-axis motion control/High-speed data acquisition/Industrial AI workstation/OLED production control/Automation test equipment/High-frame-rate image processing/Industrial signal analysis/Deep learning
System Parameter
- Series
- HC Series
- Model
- HC8034-M12480
- Mother Board
- Q670
- CPU
- Intel® i7-12700 Core™ Processors
- RAM
- 16Gb SO-DIMM DDR5
- Storage
- 256GB M.2 2280 SSD (SATA)
- Display
- 1x DP 1.4a,MAX 4096 x 2304@60Hz;1x HDMI 2.0b,MAX 4096 x 2160@30Hz;1x VGA,MAX 1920 x 1200@60Hz
- Ethernet Port
- 1x LAN,Intel® I219;2x LAN,Intel® I210
- COM Port
- 1x RS-232/422/485;3x RS-232/485;2x RS-232
- USB Port
- 6 x USB3.2 (GEN2),2 x USB2.0
- Audio
- 1x Line-out、 1x Mic-in
Internal Module
- PCIe
- 1x PCIe 5.0 x16, 1x PCIe 4.0 x4(x2 signal)
- PCI
- 2 x PCI slot
- Mini PCIe
- None Support
- SIM
- 1 x NANO SIM
- M.2
- 1 x M.2 3052 supports 4G/5G
- GPIO
- Input: 16 DI - Output: 16 DO
Other
- Remote
- Support remote switch
- RESET
- Support long - press restart
OS
- System OS
- Windows 10/11,centos 8, ubuntu 20.04/22.04/24.04
Power Supply
- Input Voltage
- DC 24V (Optional 9-36V Configuration)
- Power
- 240W
Certificates
- Certificates Support
- CE、FCC
Environment
- Storage Temperature
- -20°C ~60°C
- Operating Temperature
- 0~50°C
- Relative Humidity
- 10 ~ 95% @ 40°C (non-condensing)
Mechanical
- Installation
- wall-mounted installation
- Dimensions
- 220mm x 226mm x 176mm
- Weight
- 4.3kg

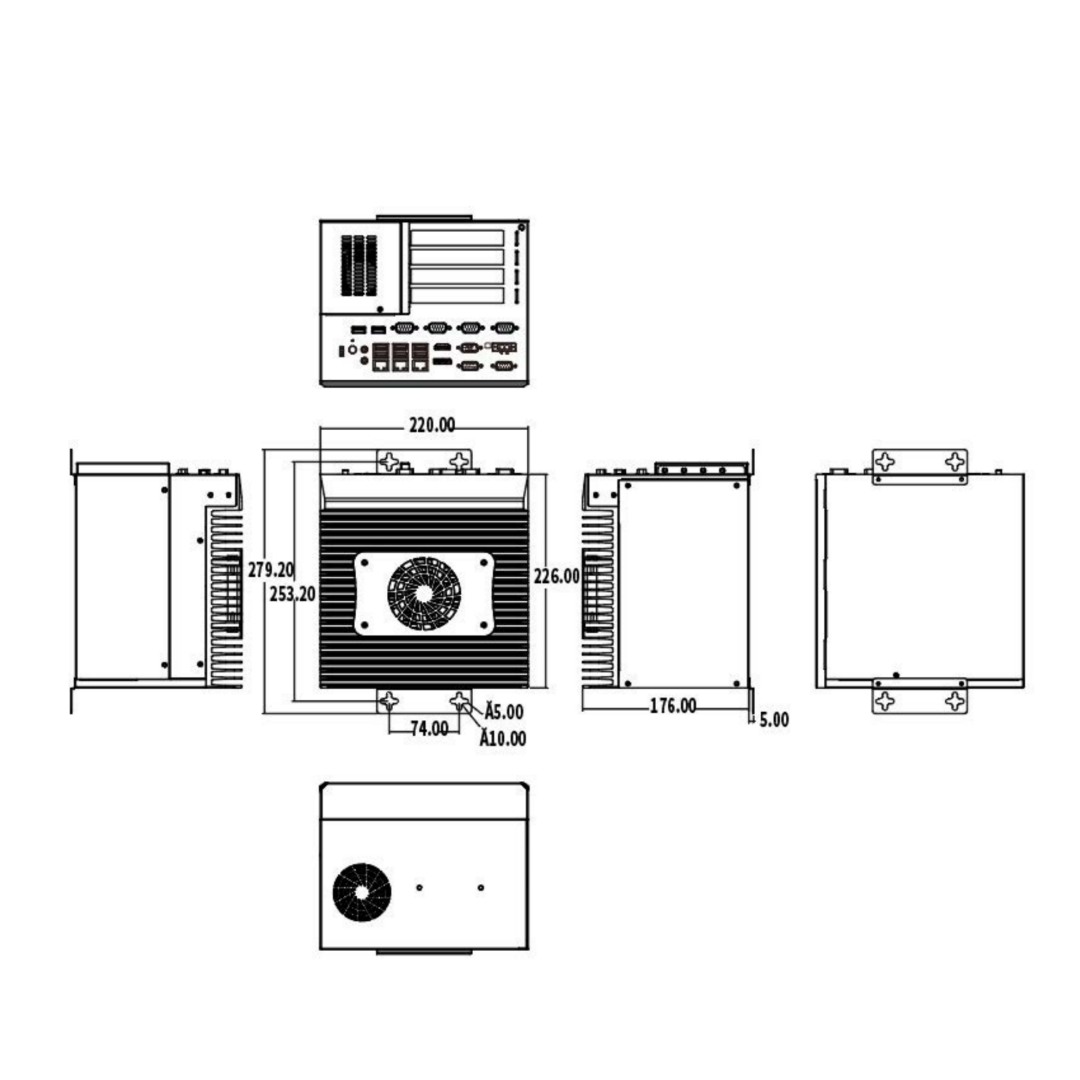

Mechanical drawing
Compact housing dimensions
220mm x 226mm x 176mm
