Edge AI Computer
HWAINTEK · Edge AI Computer

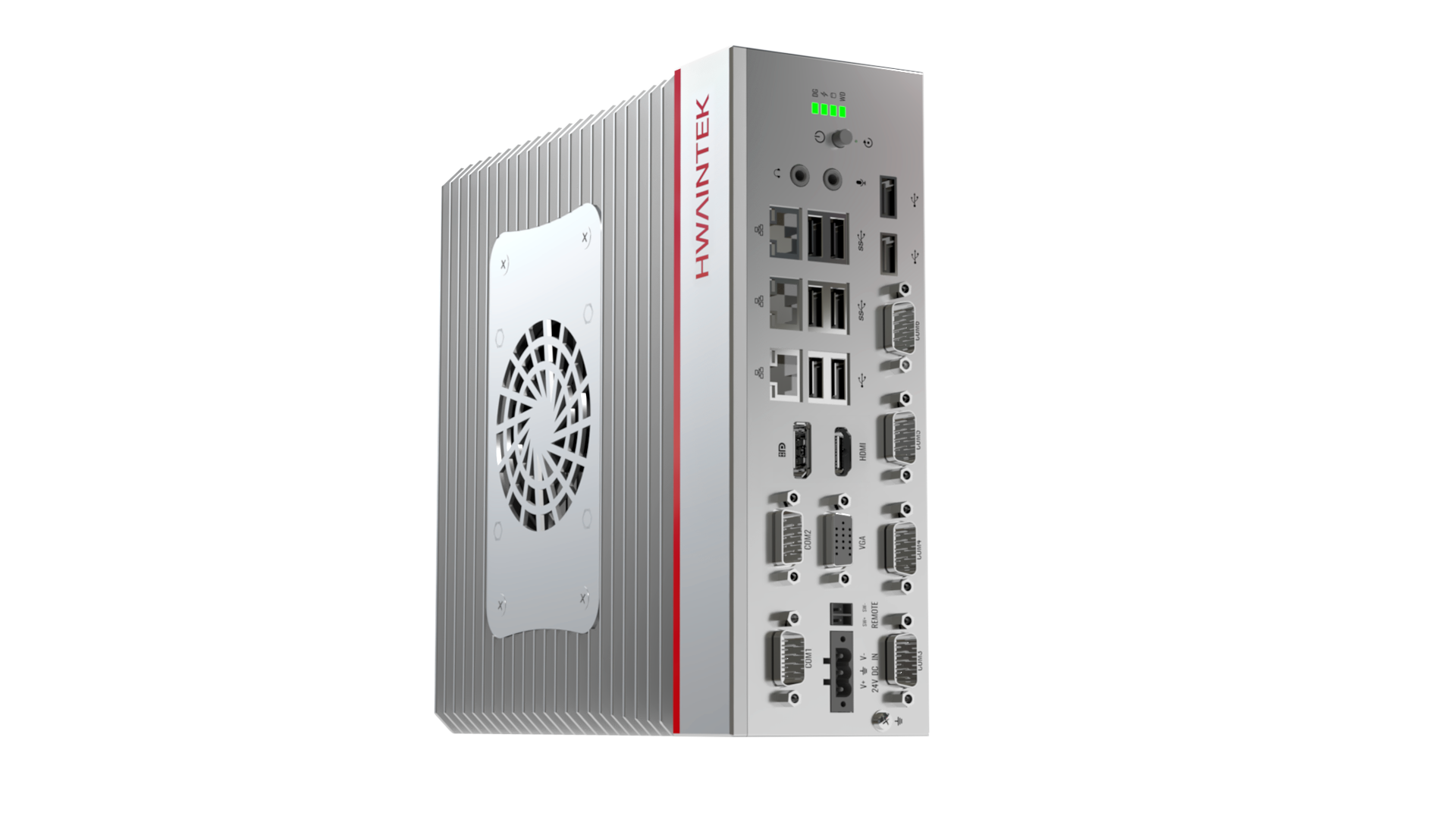

HC8010-M12480
IPC Box
The HWAINTEK HC8010-M12480 is an HC Series edge AI computer. Rated specifications: System OS Windows 10/11，centos 8， ubuntu 20.04/22.04/24.04, Installation wall-mounted installation, Relative Humidity 10% ~ 90% @ 40°C, non-condensing. It draws 200W from DC 24V (Optional 9-36V Configuration) and operates from 0~50°C. The body measures 220 x 226 x 75mm and weighs 3.4kg.
- Series
- HC Series
- Model
- HC8010-M12480 (Q670)
- Mother Board
- Q670
- CPU
- Intel® i7-12700 Core™ Processors
In stockModel: HC8010-M12480
Performance highlights
Engineered for precise industrial imaging
- Machine vision AI computing
- Multi-axis motion control - Intergrate EtherCAT protocol
- High-speed data acquisition
- Industrial signal analysis
Technical data
Product parameters
An Industrial Box PC (IPC) is a compact, high-performance industrial computer designed to operate as the central control and processing unit for automation systems, Machine Vision, Motion Control, and smart manufacturing applications.
System Parameter
- Series
- HC Series
- Model
- HC8010-M12480 (Q670)
- Mother Board
- Q670
- CPU
- Intel® i7-12700 Core™ Processors
- RAM
- 16Gb SO-DIMM DDR5
- Storage
- 256GB M.2 2280 SSD (SATA)
- Display
- 1x DP 1.4a，MAX 4096 x 2304@60Hz；1x HDMI 2.0b，MAX 4096 x 2160@30Hz；1x VGA，MAX 1920 x 1200@60Hz
- Ethernet Port
- 1x LAN Intel® I219；2x LAN Intel® I210 - (all support EtherCAT Master method)
- COM Port
- 1x RS-232/422/485；3x RS-232/485；2x RS-232
- USB Port
- 6 x USB3.2 (GEN2)，2 x USB2.0
- Audio
- 1x Line-out、 1x Mic-in
Internal Module
- PCIe
- None Support
- PCI
- None Support
- Mini PCIe
- None Support
- SIM
- 1x NANO SIM
- M.2
- 1 x M.2 3052 supports 4G/5G
- GPIO
- None Suportt
Other
- Remote
- Support remote switch
- RESET
- Support long - press restart
OS
- System OS
- Windows 10/11，centos 8， ubuntu 20.04/22.04/24.04
Power Supply
- Input Voltage
- DC 24V (Optional 9-36V Configuration)
- Power
- 200W
Certificates
- Certificates Support
- CE、FCC
Environment
- Storage Temperature
- -20°C ~60°C
- Operating Temperature
- 0~50°C
- Relative Humidity
- 10% ~ 90% @ 40°C, non-condensing
Mechanical
- Installation
- wall-mounted installation
- Dimensions
- 220 x 226 x 75mm
- Weight
- 3.4kg

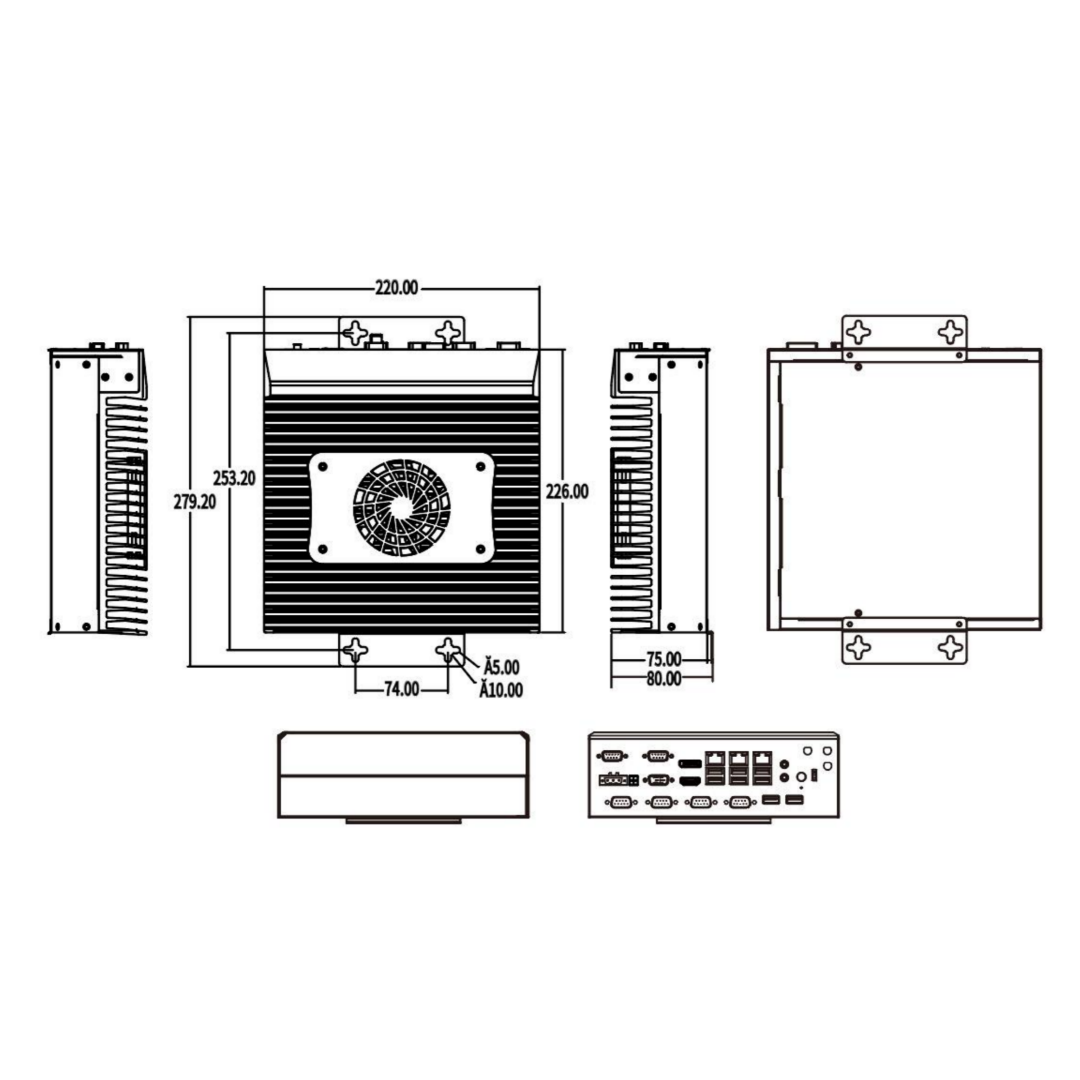

Mechanical drawing
Compact housing dimensions
220 x 226 x 75mm
