Industrial CameraG5-530 - Alvium G5-530 VSWIR
Allied Vision · Industrial Camera

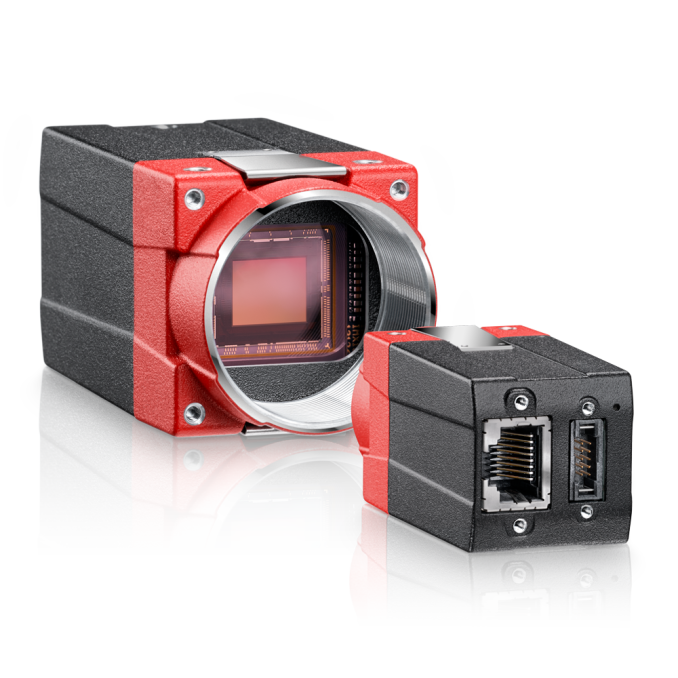

Alvium G5-530 VSWIR

G5-530

The Allied Vision Alvium G5-530 VSWIR is a 5.3 MP monochrome GigE industrial camera. It is built on the Sony IMX992 (1/1.4" - InGaAs) sensor with a global shutter and reads out 2592 x 2056 at 84 fps. It takes C-mount, CS-mount optics and connects over GigE, outputting Mono8 (default) at up to 12 bits. It operates from -20 °C to 50 °C (housing temperature). The body measures 60mm × 29mm× 29mm and weighs 100 g.

Series Type
SWIR Camera
Sensor
1/1.4" - InGaAs
Image Sensor
Sony IMX992
Shutter
Global
In stockModel: Alvium G5-530 VSWIR
Get a quote
Performance highlights

Engineered for precise industrial imaging

  • Ultra-compact form factor (29mm x 29mm), lightweight, energy-efficient, and cost-effective (SWaP+C optimized)
  • High modularity including board-level versions (Flex & Frame) and various mount options
  • Support of all TEC-less IMX99x SenSWIR sensors including taped and removed cover glass options
  • Spectral range: 400 nm – 1,700 nm
  • Multiple standardized interface options: USB3, GigE, 5GigE, and CSI-2(MIPI) including range extenders for FPD-Link III and GMSL2
  • Extended feature set including sequencer, convolution filters, and lens shading compensation
  • Maximum design flexibility and cost-efficiency for embedded and OEM SWIR applications
  • Extended operating temperature range from -20°C to +65°C
Alvium G5-530 VSWIRGet a quote
