Industrial Camera
Allied Vision · Industrial Camera

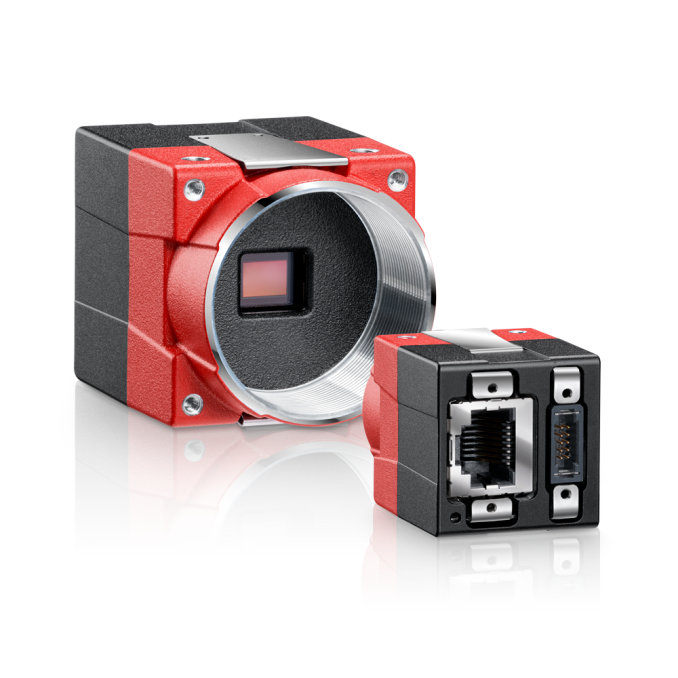

Alvium G1-500
Camera 5MP
The Allied Vision Alvium G1-500 is a 5 MP monochrome GigE industrial camera. It is built on the Onsemi - AR0521SR (1/2.5" CMOS) sensor with a rolling shutter and reads out 2592 x1944 at 23 fps. It takes C-mount optics and connects over GigE (GigE, PoE). It operates from -20 °C to 65 °C. The body measures 41mm × 29mm × 29mm and weighs 70 g.
- Series Type
- Alvium G1
- Sensor
- 1/2.5" CMOS
- Image Sensor
- Onsemi - AR0521SR
- Shutter
- Rolling
Out of stockModel: Alvium G1-500
Performance highlights
Engineered for precise industrial imaging
- You need a reliable plug-and-play solution that integrates effortlessly with your existing setup.
- You want a future-proof investment with long-term support and updates.
- You need the freedom to choose the ideal sensor, balancing speed, sensitivity, and image quality.
- You're looking for a compact powerhouse that delivers big performance in small spaces."
Technical data
Product parameters
Alvium G1-500 innovative GigE camera with ON Semi AR0521 CMOS rolling shutter sensor provides industrial performance for cost effective machine vision applications.
Basic
- Series Type
- Alvium G1
- Sensor
- 1/2.5" CMOS
- Image Sensor
- Onsemi - AR0521SR
- Shutter
- Rolling
- Resolution
- 2592 x1944
- Frame Rate
- 23 fps
- Bit Depth
- 10
- Type
- Mono
- Pixel Size
- 2.20 µm × 2.20 µm
- Image Format
- YCbCr411_8_CbYYCrYY, YCbCr422_8_CbYCrY, YCbCr8_CbYCr
- Gain
- 0.0 dB to 24.1 dB
- Exposure Time
- 8 µs to 480.00 ms
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
Performance
- Image Buffer
- 32 MByte
Communication
- Interface
- GigE, PoE
- Mount
- C-mount
Power Supply
- Input Voltage
- 10.8 to 26.4 VDC AUX | IEEE 802.3af, Power Class 0 PoE
- Power
- 2.9 W at 12 VDC (typical) | Power over Ethernet: 3.2 W (typical)
Environment
- Operating Temperature
- -20 °C to 65 °C
Mechanical
- Dimensions
- 41mm × 29mm × 29mm
- Weight
- 70 g
Mechanical drawing
Compact housing dimensions
41mm × 29mm × 29mm
