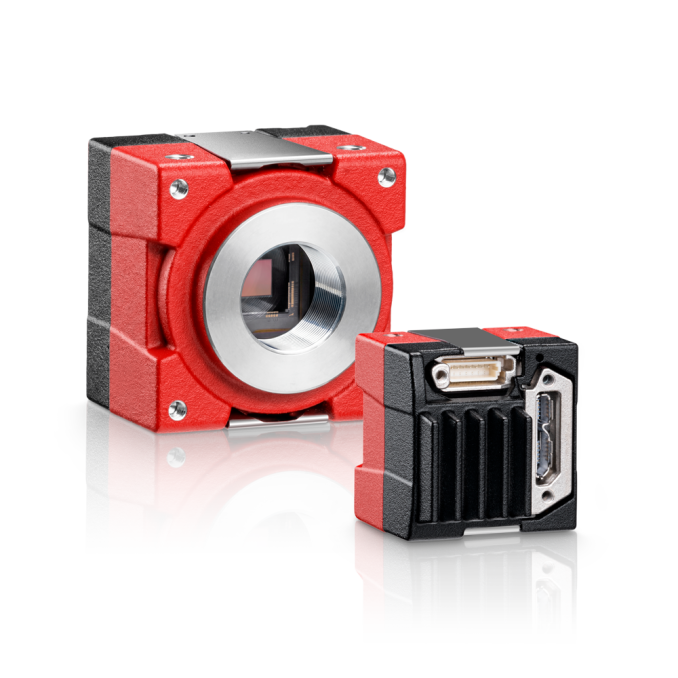

Alvium 1800 U-2460
Camera 24.6MP
The Allied Vision Alvium 1800 U-2460 is a 25 MP colour USB3 industrial camera. It is built on the Sony - IMX540 (1.2" CMOS) sensor with a global shutter and reads out 5328 × 4608 at 17 fps. It takes C-mount optics and connects over USB3 (USB 3.0). It draws 4.2 W (typical) from Power over USB 3.1 Gen 1 | External power 5.0 V and operates from -20 °C to 65 °C. The body measures 38mm × 29mm × 29mm and weighs 65 g.
- Series Type
- Alvium 1800 U
- Sensor
- 1.2" CMOS
- Image Sensor
- Sony - IMX540
- Shutter
- Global
Engineered for precise industrial imaging
- You're looking for a reliable and efficient USB3 Vision solution with intelligent power management
- You need high image quality at a great price-performance ratio
- You demand high-resolution imaging with up to 24.6 megapixels and fast frame rates up to 688 frames per second
- You want high-precision sensor alignment for reliable image reproduction quality
Product parameters
Equipped with the newest generation of sensors, these small and lightweight Alvium U cameras deliver high image quality and frame rates at the best price-performance ratio. With its USB3 Vision compliant interface and industrial-grade hardware, it is your workhorse for different machine vision applications whether it is on a PC-based or an embedded system.
Basic
- Series Type
- Alvium 1800 U
- Sensor
- 1.2" CMOS
- Image Sensor
- Sony - IMX540
- Shutter
- Global
- Resolution
- 5328 × 4608
- Frame Rate
- 17 fps
- Bit Depth
- 12
- Type
- Color
- Pixel Size
- 2.74 µm × 2.74 µm
- Image Format
- YCbCr411_8_CbYYCrYY, YCbCr422_8_CbYCrY, YCbCr8_CbYCr
- Binning
- Support
- Gain
- 0.0 dB to 48.0 dB
- Exposure Time
- 15 µs to 10 s
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
Performance
- Image Buffer
- 256MB
Communication
- Interface
- USB 3.0
- Mount
- C-mount
Power Supply
- Input Voltage
- Power over USB 3.1 Gen 1 | External power 5.0 V
- Power
- 4.2 W (typical)
Environment
- Operating Temperature
- -20 °C to 65 °C
Mechanical
- Dimensions
- 38mm × 29mm × 29mm
- Weight
- 65 g
Compact housing dimensions
38mm × 29mm × 29mm
