Smart CameraG1-510 - Alecs G1-510 NX16
Allied Vision · Smart Camera

Alecs G1-510 NX16

G1-510

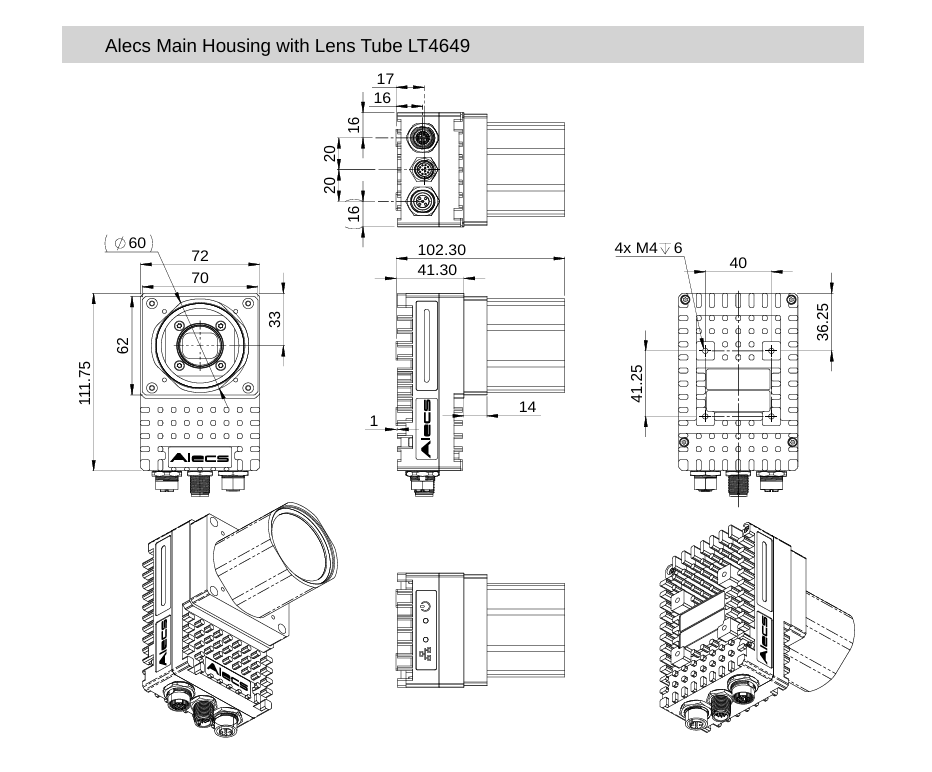

The Allied Vision Alecs G1-510 NX16 is a 5.1 MP colour smart camera. It uses a global shutter and reads out 2464 x 2064 at 81 fps. It takes C-mount optics. It runs on 24 VDC and operates from -20 °C to 65 °C. The body measures 102mm × 72mm × 112mm and weighs 810 g.

Series Type
All-in-One
Resolution
2464 x 2064
Frame Rate
81 fps
Shutter
Global
In stockModel: Alecs G1-510 NX16
Get a quote

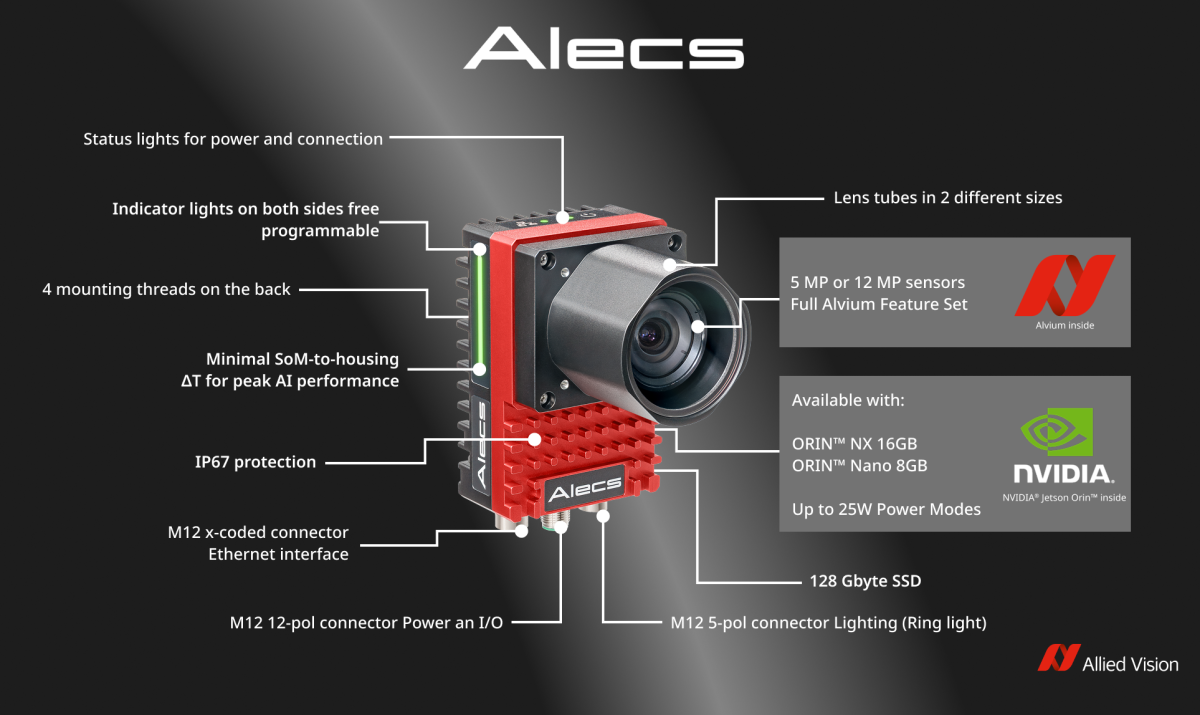

Performance highlights

Engineered for precise industrial imaging

  • Build and deploy advanced vision and AI applications without external PCs or complex system integration.
  • Built on the trusted Alvium platform, offering a wide range of sensors and a rich feature set, ensuring dependable performance and flexibility for any application.
  • An open platform architecture enables easy integration of third-party software, custom AI models, and application-specific extensions.
  • Capture, process, and analyze images directly on the device, no cloud needed.
  • IP67-rated housing, vibration and shock resistance, and an operating temperature range from –20 to +65 °C ensure reliable 24/7 operation.
Alecs G1-510 NX16Get a quote
